Specifications

Contacts	2NO
No. of Positions	2
Rated Voltage DC (V)	12
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Green
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Green
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VDC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This illuminated selector switch kit features a green colour and has a 2-position return from C to B. It is equipped with a short handle and an integrated green LED. The switch operates on 12V DC power and has 2 normally open contacts. It belongs to a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

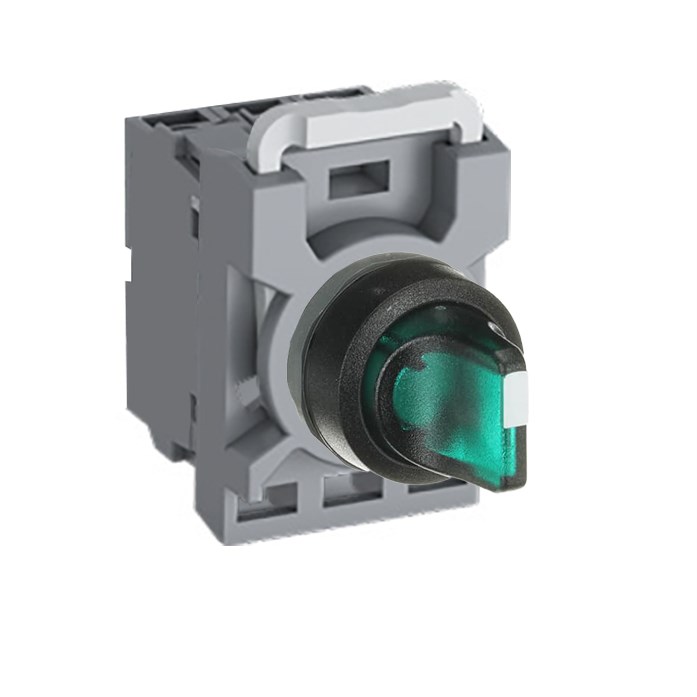

ABB MPS2ISOCBG020 Selector Switch Kit Green 12VDC 2Position 2NO Illuminated Momentary Short Handle Plastic

Product Code: MPS2ISOCBG020
