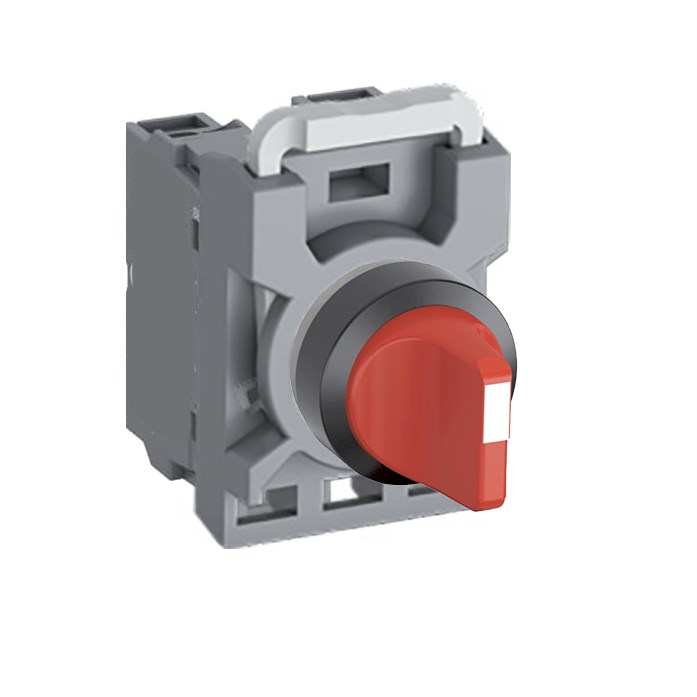

ABB MPS2NSAACR11 Selector Switch Kit Red 2Position 1NO+1NC Non-Illuminated Maintained Short Handle Plastic

Product Code: MPS2NSAACR11

  • Non-illuminated red selector switch
  • Durable plastic construction
  • Operates in -25 to 70°C temperature range
  • Contact config: 1NO+1NC, 10A thermal current
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Positions 2
Maintained Positions A,C
Spring Return From Not Applicable
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Selector Switch Kit
Brand ABB
Series MPS2
Actuator Type Short Handle
Colour Red
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Function Maintained
Illumination Non-Illuminated
Maintained Position A, C
Material Plastic
Mode of Operation Maintained A to C
Number of Positions 2
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This Non-Illuminated Selector switch Kit is designed for engineers in need of a reliable and durable solution. The switch features a red colour and a fixed 2-position design with A and C terminals. It comes with a short handle for easy operation. The switch is momentary, meaning it returns to its original position after being pressed. It has 1 normally open (NO) contact and 1 normally closed (NC) contact. This kit is part of our modular plastic range, ensuring compatibility with other products in the range.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
