Specifications

Contacts	2NC
No. of Positions	2
Maintained Positions	A,C
Spring Return From	Not Applicable
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic

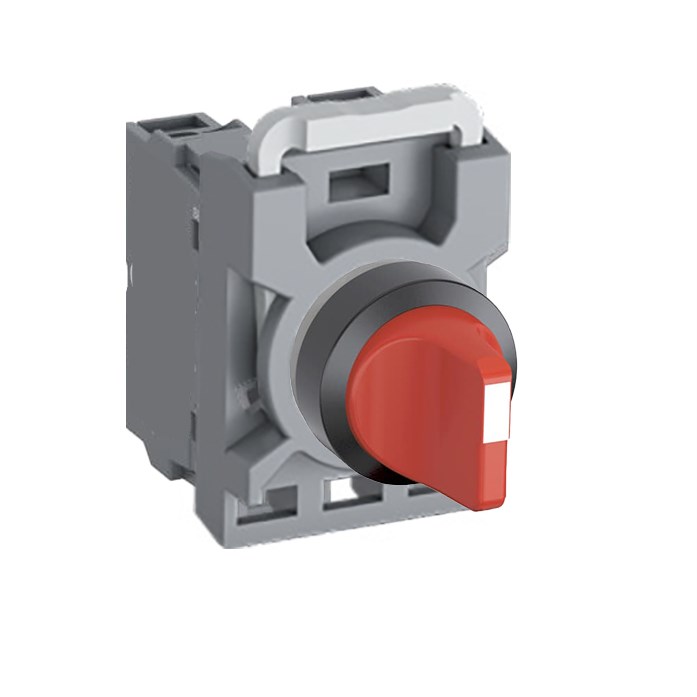

Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Red
Contact Configuration	2NC
Cutout Size	22 mm
Function	Maintained
Illumination	Non-Illuminated
Maintained Position	A, C
Material	Plastic
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
