Specifications

Contacts	2NO
No. of Positions	2
Maintained Positions	B,C
Spring Return From	Not Applicable
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Red
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Non-Illuminated
Maintained Position	B, C
Material	Plastic
Mode of Operation	Maintained B to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

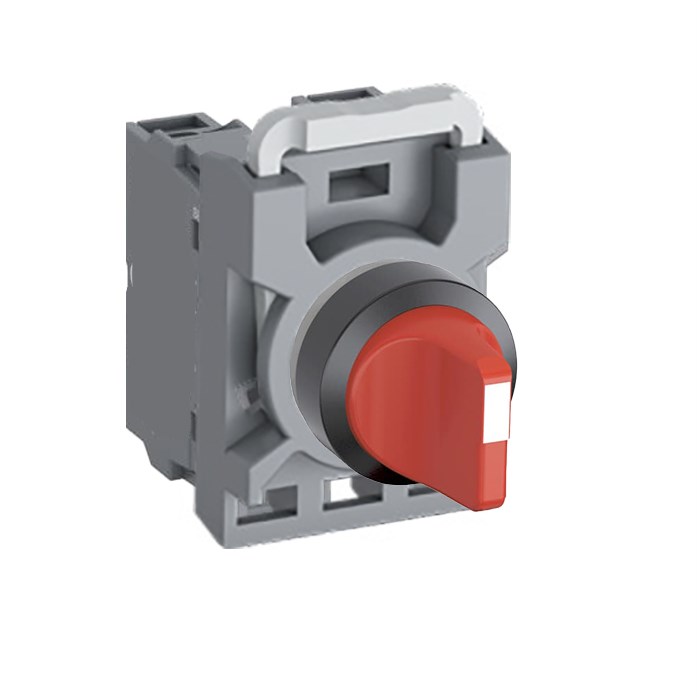

This non-illuminated selector switch kit is designed for engineers seeking a red 2-position return switch from position B to C. It features a short handle that is maintained in position. The switch has 2 normally open (NO) contacts. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPS2NSABCR20 Selector Switch Kit Red 2Position 2NO Non-Illuminated Maintained Short Handle Plastic B C

Product Code: MPS2NSABCR20
