Specifications

Contacts	2NO
No. of Positions	2
Maintained Positions	Not Applicable
Spring Return From	C->B
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic
Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Short Handle
Colour	Black
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Non-Illuminated
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This non-illuminated selector switch kit is designed for engineers seeking a black 2 position return C to B switch. It features a short handle momentary design and has 2 normally open contacts (2NO). The switch is part of a modular plastic range and has an IP66 front rating, ensuring protection against dust and water. The terminals have an IP20 rating.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

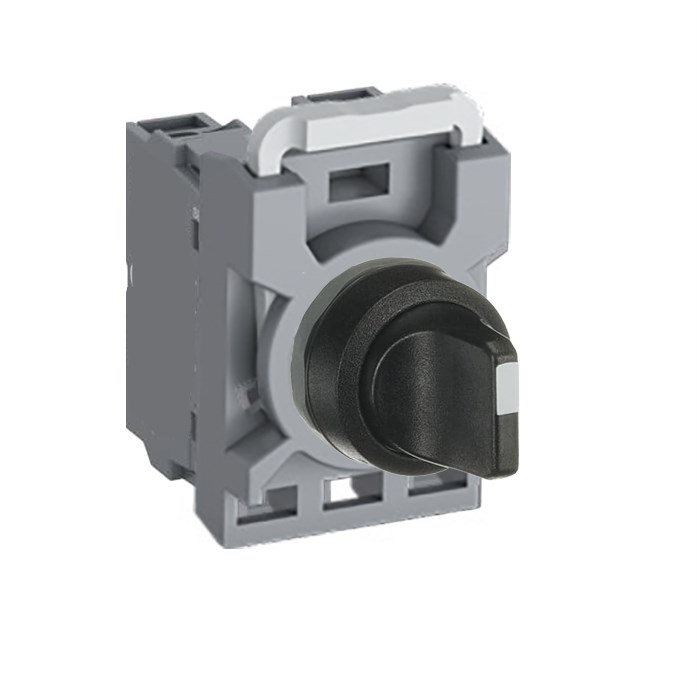

ABB MPS2NSOCBB20 Selector Switch Kit Black 2Position 2NO Non-Illuminated Momentary Short Handle Plastic C B

Product Code: MPS2NSOCBB20
