When it comes to selecting the right industrial switch for your application, understanding the technical specifications is crucial. This product from the MMS series offers a blend of reliability and durability, making it a suitable choice for various commercial and industrial environments.

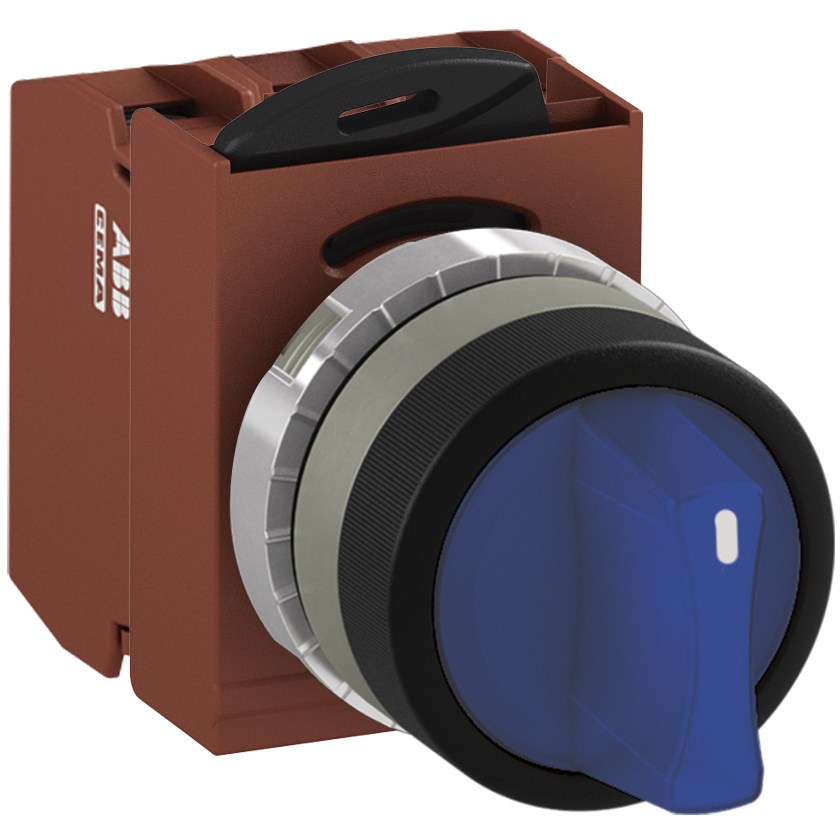

Operating at a rated voltage of 230 VAC, this illuminated switch is designed with a blue metal exterior that ensures both visibility and robustness. The illumination feature enhances usability in low-light conditions, making it practical for diverse settings. Its operational temperature range extends from -30 to 70 degrees Celsius, providing flexibility across different climates.
The switch's degree of protection is rated at IP66, which means it's well-protected against dust ingress and high-pressure water jets from any direction—a critical feature for outdoor or harsh indoor environments. Adhering to stringent standards such as CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5, and UL 508 underscores its compliance with international safety norms.
Electrical connectivity is facilitated through screw-type connections—an industry-standard known for secure fastening and ease of installation. With an impressive rated insulation voltage of up to 690 V and an impulse withstand voltage of 4 kV, this switch can handle substantial electrical loads safely.
The contact configuration features one normally open (NO) and one normally closed (NC) contact setup. This dual configuration allows versatility in circuit design—ideal for applications requiring simultaneous opening and closing functions.
A short handle actuator type provides ergonomic operation while maintaining functionality at three maintained positions: A, B, C. This maintained function ensures that once set in position by the user; it remains there until manually changed—a useful trait in systems where consistent control states are necessary.
Rated with a thermal current capacity of up to 10 A suggests suitability for moderate power applications without overheating concerns. The cutout size measures at a standard 22 mm diameter—compatible with common panel designs ensuring straightforward integration into existing setups.
Furthermore, the LED block light type not only promises energy efficiency but also longevity compared to traditional lighting solutions within switches—an economical choice over time due to reduced maintenance needs.
Overall this product combines essential features required by professionals seeking reliable components tailored towards demanding environments whilst meeting rigorous performance criteria outlined by recognized standards bodies globally—all encapsulated within its robust design framework underpinned by solid engineering principles inherent throughout MMS series offerings.
