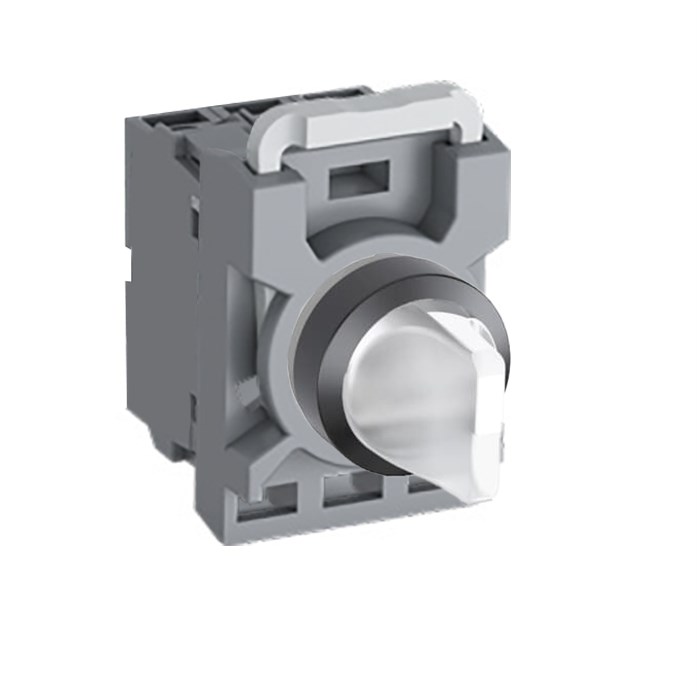

The MPS3 Series switch is a robust and reliable choice for those in industrial and commercial sectors seeking a dependable solution for their electrical systems. This product is designed with precision to meet rigorous standards, making it suitable for demanding environments.
Operating at a rated voltage of 220 VDC, this illuminated switch offers clear visibility with its transparent plastic construction. The illumination feature ensures that the switch can be easily identified even in low-light conditions, enhancing operational efficiency and safety.
Constructed from durable plastic, the switch withstands harsh conditions with an operational temperature range from -25 to 70 degrees Celsius. This resilience makes it ideal for various applications where temperature fluctuations are common.
The MPS3 Series adheres to several international standards and approvals including CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5 and UL 508. These certifications underscore its reliability and compliance with global safety standards.
In terms of electrical specifications, the switch features a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of up to 6 kV. It supports a contact configuration of one normally open (NO) plus one normally closed (NC), providing versatile functionality in circuit designs.
Designed with user-friendly operation in mind, the actuator type is a short handle which allows for straightforward engagement. The maintained function means that once actuated into position A B or C it stays securely in place until manually changed ensuring consistent performance without unintended changes during operation.
With a rated thermal current capacity of up to 10 A this switch can efficiently handle moderate power loads typical in many industrial settings while maintaining optimal performance levels over time. The cutout size required for installation is standardized at 22 mm facilitating easy integration into existing panels or equipment setups without requiring extensive modifications.
Overall the MPS3 Series switch combines practical design elements with high-quality materials ensuring longevity reliability and adherence to stringent industry standards making it an excellent choice for professionals looking to enhance their system's functionality efficiently within specified parameters.
