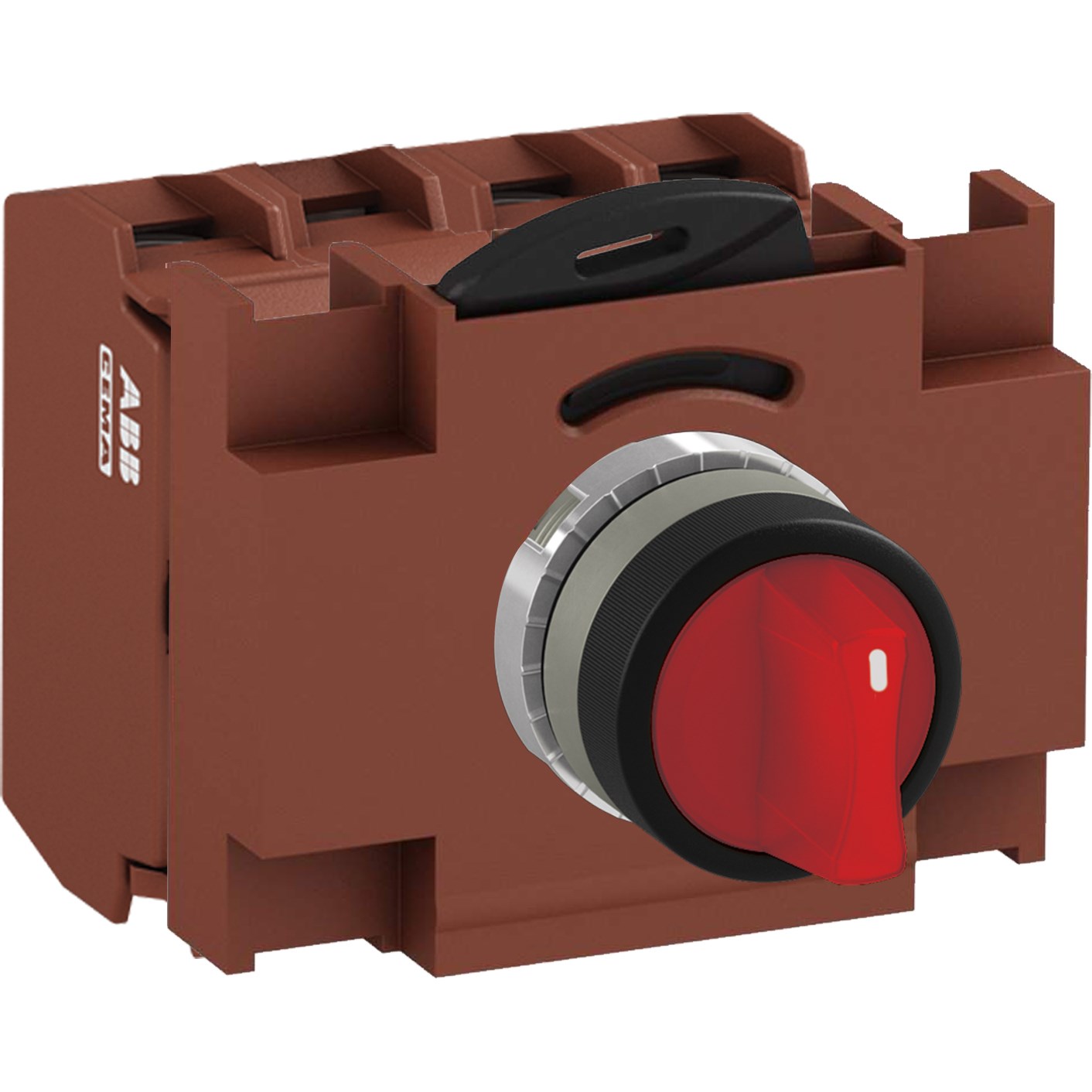

For professionals in the electrical and automation industries, selecting the right components is essential to ensure reliability and safety in operations. The product we're discussing today is a robust illuminated switch from the MMS series, designed for industrial and commercial applications that demand precision and durability.
This switch operates at a rated voltage of 110 VAC, making it suitable for various power systems. It's equipped with an illumination feature that enhances visibility, particularly useful in low-light environments or where immediate status indication is crucial. The red color ensures clear identification against other controls on your panel.
Constructed from metal, this switch offers outstanding durability and resilience under demanding conditions. It can withstand operational temperatures ranging from -30 to 70 degrees Celsius, ensuring performance across diverse environmental conditions. With an IP66 degree of protection, it’s dust-tight and protected against powerful water jets—ideal for harsh industrial settings.
The switch adheres to several standards including CSA C22.2 No. 14, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-5-1, IEC/EN 60947-5-5 as well as UL 508 approvals. This compliance guarantees its suitability for both national and international markets while meeting stringent safety requirements.
Connection is facilitated via Faston terminals which simplify installation without compromising on secure connectivity. The device also boasts a rated insulation voltage of 690 V along with a rated impulse withstand voltage of 4 kV—features that underline its robustness against transient overvoltages.
The contact configuration is set as 3NC (normally closed), providing reliable switching actions necessary for maintaining system integrity during operation interruptions or emergencies. Additionally, the actuator features a short handle design offering ergonomic control during use with momentary function allowing temporary circuit activation—a practical choice for applications requiring quick manual resets or overrides.
Rated thermal current stands at an impressive 10 A which supports substantial load capacities typical in industrial setups while maintaining optimal performance levels over prolonged periods of use.
With a standard cutout size of 22 mm, integration into existing panels should be straightforward without needing extensive modifications to accommodate this component.
Lastly maintained positions are labeled as A C B providing flexibility depending on specific application needs whether it's maintaining certain states after actuation or reverting automatically when released—all supported by power supply light blocks type enhancing operational feedback directly at point-of-service locations within your system architecture.
