Specifications

Contacts	1NO + 1NC
No. of Positions	3
Maintained Positions	Not Applicable
Spring Return From	A,C->B
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic

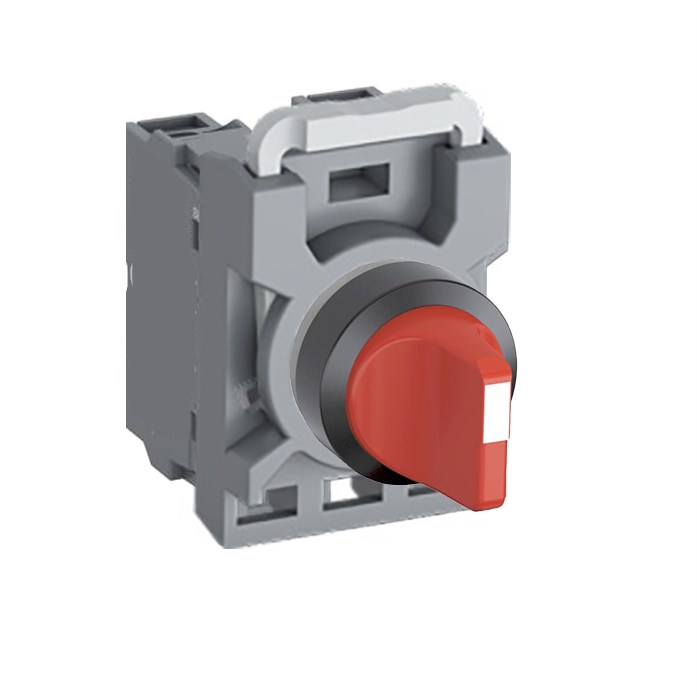

Product Type	Selector Switch Kit
Brand	ABB
Series	MPS3
Actuator Type	Short Handle
Colour	Red
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Function	Momentary
Illumination	Non-Illuminated
Maintained Position	A, C, B
Material	Plastic
Number of Positions	3
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
