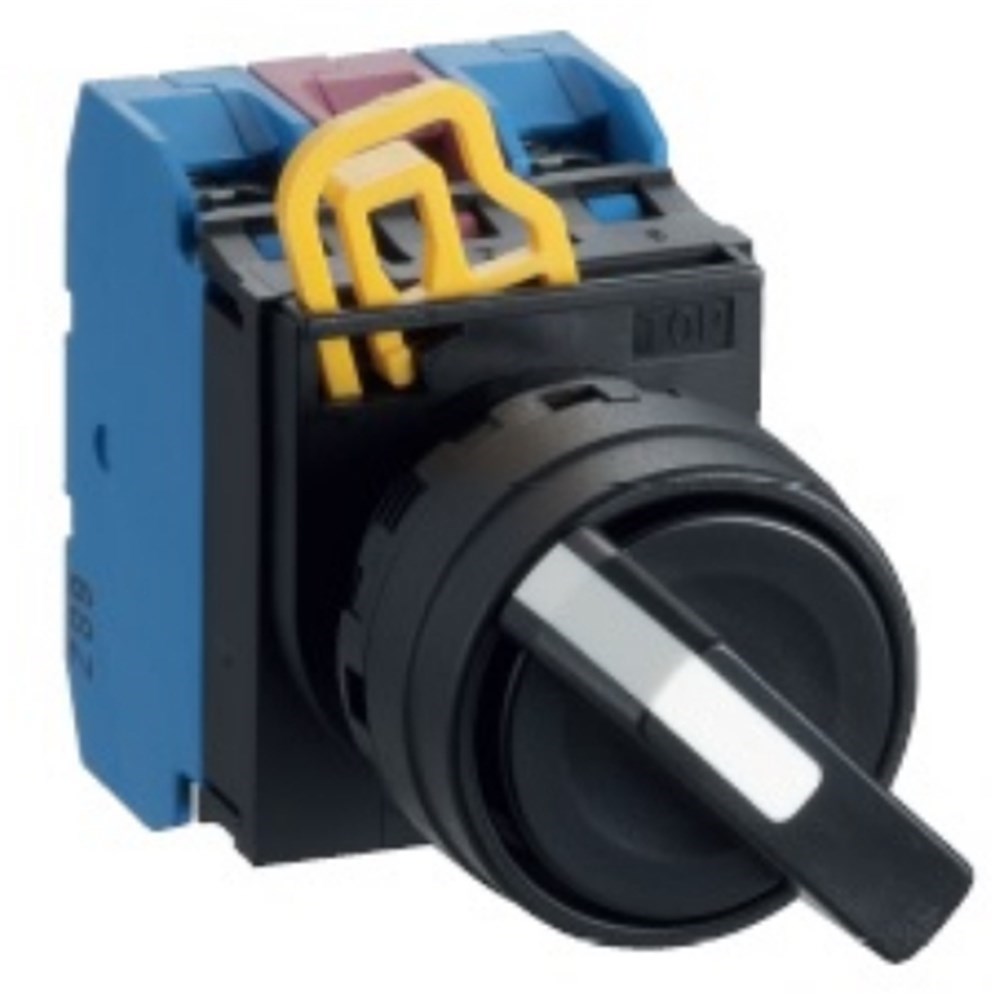

IDEC YW1S-2E20 Selector Switch 2Position 2NO Maintained Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H

Product Code: YW1S-2E20

  • Selector switch with 10A current rating
  • Operates at 50/60 Hz frequency
  • IP20/IP65 protection for durability
  • Maintained function with 2NO contacts
  • Fits 22mm mounting hole, round plastic bezel
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
No. of Positions 2
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Bezel Type Plastic
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Maintained
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-2E20 Selector Switch is a robust control device offering a 2-position maintained operation with dual Normally Open (NO) contacts. This switch ensures consistent performance and user safety with its IP20 finger-safe terminals. Designed for reliability, it facilitates secure switching actions in various industrial applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
