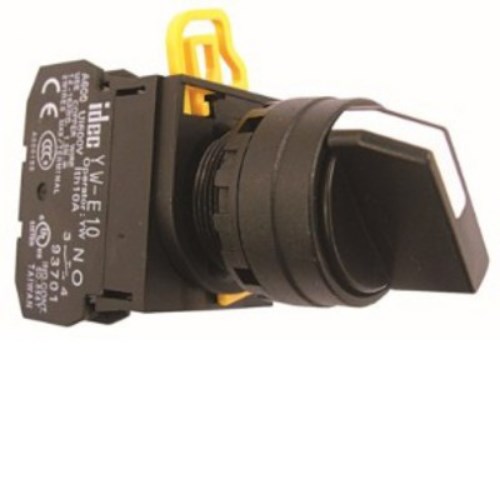

IDEC YW1S-31E20 Selector Switch 3Position 2NO Right Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1S-31E20

  • Selector switch with spring return operation
  • Rated current of 10 A, 50/60 Hz frequency
  • Compact size: 30x41.4x69.8 mm
  • IP20/IP65 protection for durability
  • Meets CSA, IEC, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
No. of Positions 3
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Bezel Type Plastic
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-31E20 Selector Switch is engineered for precise control with its 3-position interface and dual normally open (2NO) contacts. It incorporates a spring return mechanism from the right, ensuring quick reversion to the default position. Designed for user safety, it features IP20 finger-safe terminals. This switch is suitable for various industrial applications where reliable switching with a spring return function is required.
