IDEC HW1S-33TF20-K Selector Switch 3Position 2NO Non-Illuminated Knob Knob Plastic Screw Terminal

Product Code: HW1S-33TF20-K

  • Selector switch with 10A current rating
  • Two-way spring return operation
  • IP20/IP65 protection for durability
  • Fits standard 22mm mounting holes
  • CE, CSA, UL certified for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

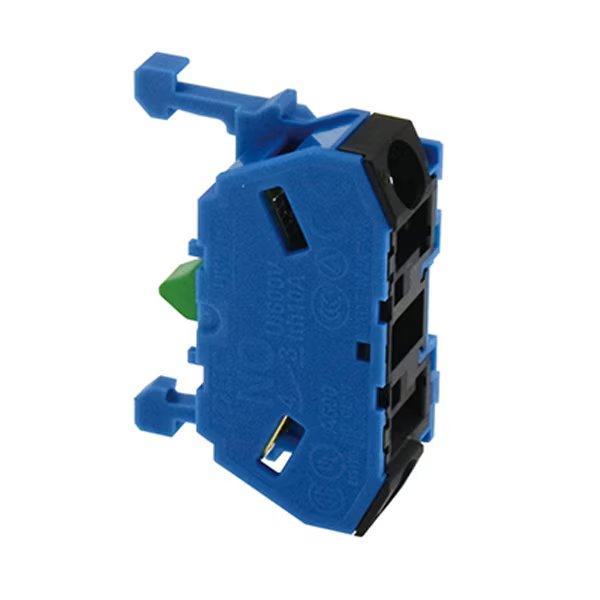

Components Selector Switch 3 Position Operator Contact Block Adaptor 1 NO Contact Block
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Knob
Bezel Material Plastic
Contact Configuration 2NO
Degree of Protection IP20, IP65
Illumination Non-Illuminated
Insulation Resistance 50 MOhm
Mode of Operation Two-Way Spring Return
Mounting Hole Diameter 22 mm
Number of Positions 3
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1S-33TF20-K is a versatile selector switch featuring a 3-position knob with spring return functionality in both directions. Equipped with two normally open (NO) contacts, it ensures reliable switching action. The durable plastic bezel is designed for 22mm mounting, making it suitable for a wide range of applications. This switch from the HW series offers ease of use and installation in various industrial settings.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
