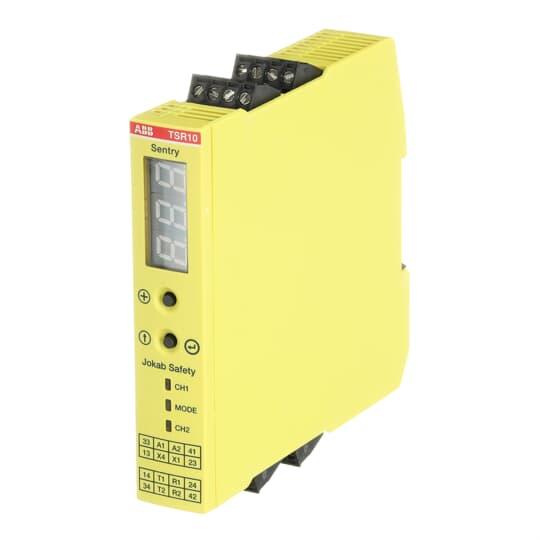

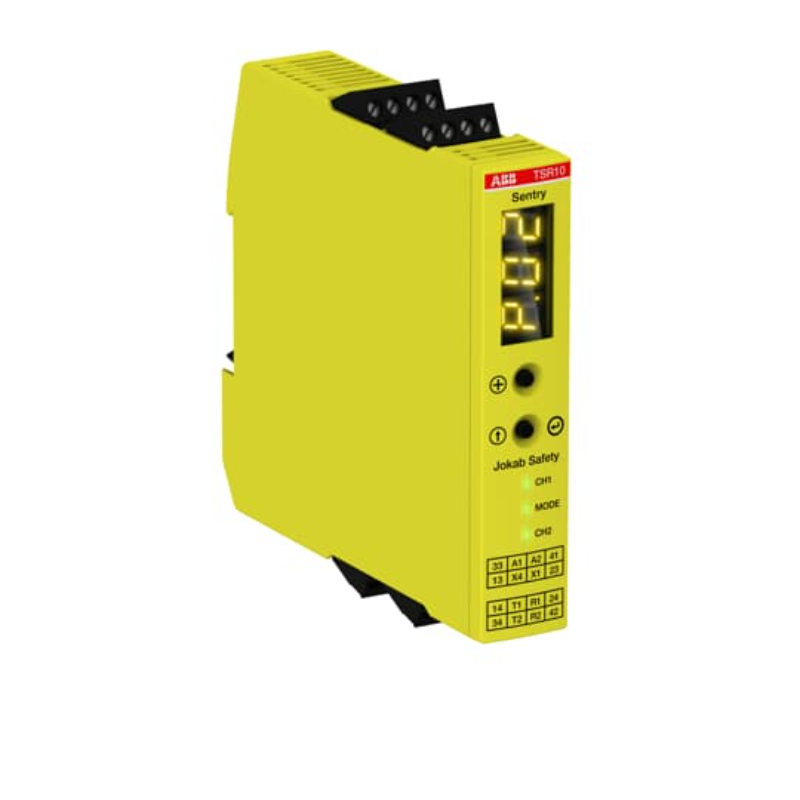

ABB TSR10 SAFETY RELAY, OUTPUT 3NO+1NC, +24VDC, MONITORING 1 OR 2 EQUIVALENT CHANNELS, OSSD OUTPUTS, ADVANCED TIMER

The Safety Relay/Safety Timer is a versatile device designed for monitoring safety devices with contacts. It features 3 normally open (NO) and 1 normally closed (NC) relay outputs, making it suitable for various applications. With a +24 VDC power supply and screw terminals, installation is easy and convenient. The device supports 1 or 2 equivalent channels, allowing for flexible configuration based on your specific needs. It also supports safety devices with OSSD outputs. The timer function of the Safety Relay/Safety Timer allows you to set a time range from 0 to 999 seconds with an accuracy better than 1%. This includes options such as OFF-delay, ON-delay, Time bypass, and Time reset. To simplify configuration and troubleshooting, the device is equipped with a front display that shows error codes and an error log. This helps in identifying and resolving any issues quickly. It's important to note that the Safety Relay/Safety Timer only has an automatic reset function.
