When it comes to safeguarding your electrical systems, selecting the right Surge Protection Device (SPD) is crucial. This SPD offers a robust solution for both industrial and commercial applications, engineered to protect your equipment against transient overvoltages caused by lightning strikes or switching operations.
Designed with a rated voltage of 180 VDC, this device ensures optimal performance in protecting sensitive electronic components. It boasts a rated current capacity of 10 kA per line and an impressive 20 kA for common mode protection, making it suitable for various demanding environments.
The device complies with several key standards such as IEC 61643-21, AS1768, UL497, A, B, and AS/NZS 4117. These approvals underline its reliability and effectiveness in providing surge protection across different settings.

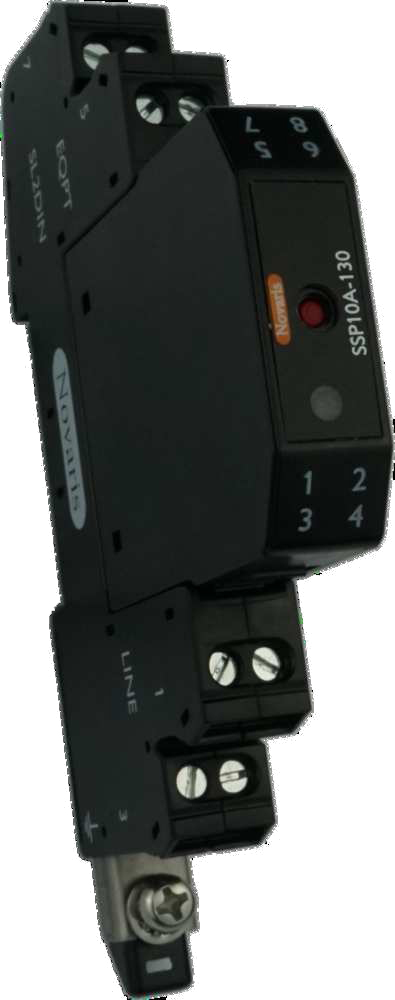

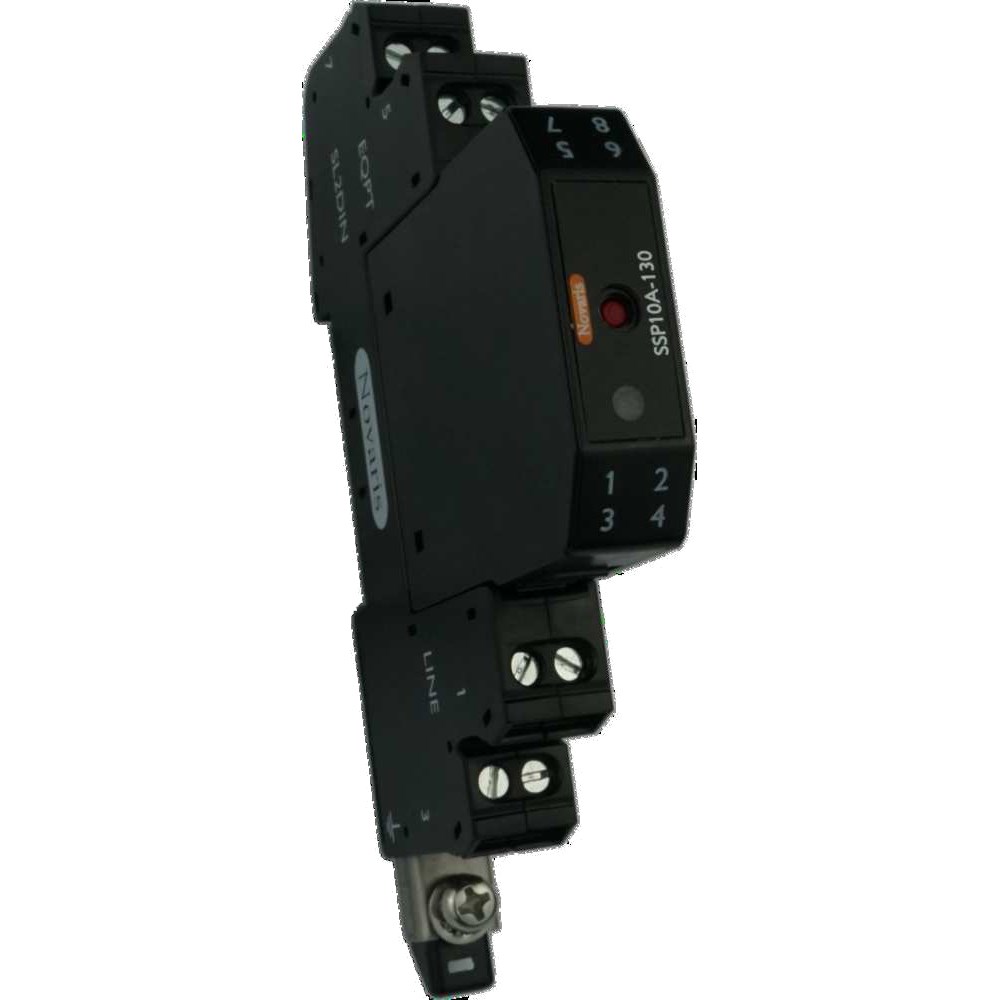

Constructed from durable polycarbonate material, this SPD is lightweight at just 70 grams yet sturdy enough to withstand operational challenges. Its compact dimensions—12 mm in width, 71 mm in height, and 110 mm in depth—facilitate easy installation on TS35 DIN rails. This makes it an ideal choice when space is at a premium without compromising on performance.
The device operates effectively within a broad temperature range from -40°C to +70°C and can handle humidity levels between 5% and 95%, ensuring resilience under varying environmental conditions.
With an IP20 degree of protection rating, the SPD provides adequate protection against solid objects larger than 12mm while ensuring safe operation within enclosed spaces. The response time of less than 5 nanoseconds guarantees rapid action against surges.
Technical specifications include a discharge current capacity of up to 15 kA and capacitance measured at approximately 3 nF. The resistance stands at a low value of just 0.02 Ohm which contributes to minimal power loss during operation.
For ease of maintenance and secure connections, the tightening torque is specified at 0.5 N-m. Additionally, the voltage protection level is set at around 314 V ensuring that your system remains safeguarded even during high-voltage transients.
This SPD protects through both transverse and common modes across one pair line configuration—ensuring comprehensive coverage for your electrical setup while maintaining operational efficiency with its rated short circuit current capability of up to 10 A.
In summary, this Surge Protection Device combines advanced features with compliance to international standards offering reliable defense against electrical surges while fitting seamlessly into existing infrastructure due to its compact design.
