Specifications

Operational Temperature Range (°C)	-40 to 70
Response Time (ns)	5
Enclosure Material	Polycarbonate
No. of Lines	1 Pair
Maximum Load Current - I? (A)	6
Maximum Continuous Voltage DC (V)	170
Maximum Continuous Voltage AC (V)	130
Maximum Discharge Current (8/20µs) (kA)	1.8

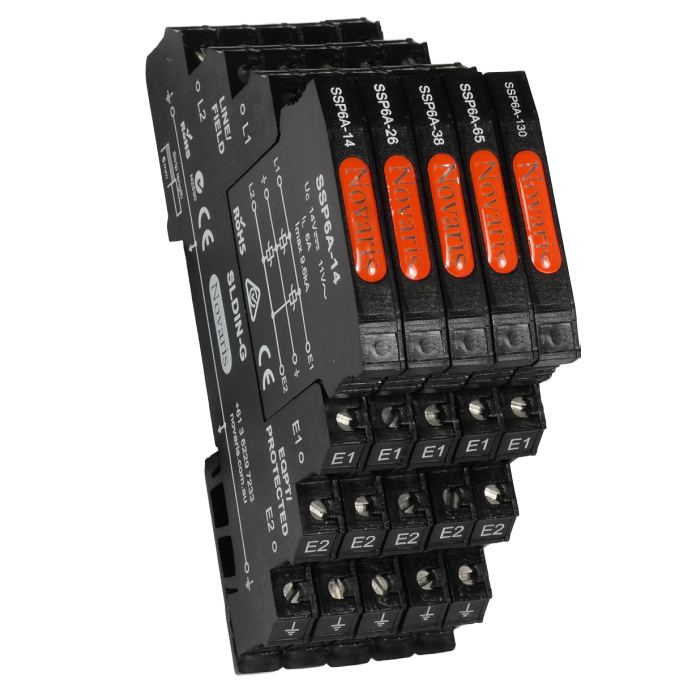

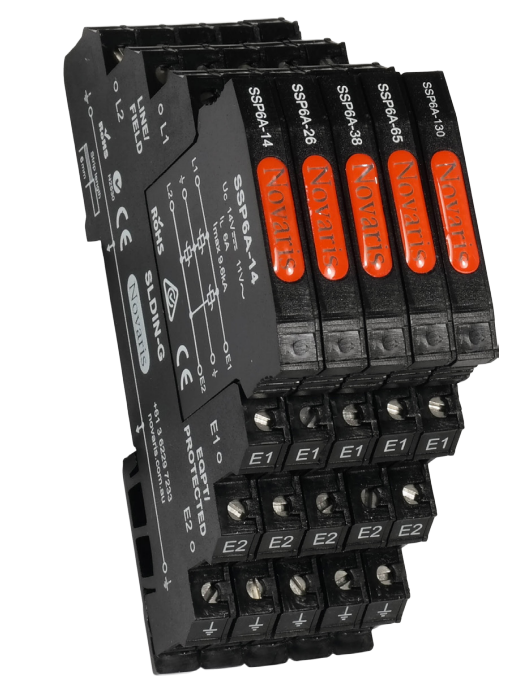

Product Type	Surge Protector
Brand	NOVARIS
Capacitance	16 nF
Connection Type	Series
Degree of Protection	IP20
Depth	68 mm
Discharge Current	3.6 kA
Height	102 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	1.8 kA (Per Line), 3.6 kA (Common Mode)
Rated Voltage	170 VDC
Resistance	0.02 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
Tightening Torque	0.5 N-m
Voltage Protection Level	450 V
Weight	35 g
Width	7 mm
