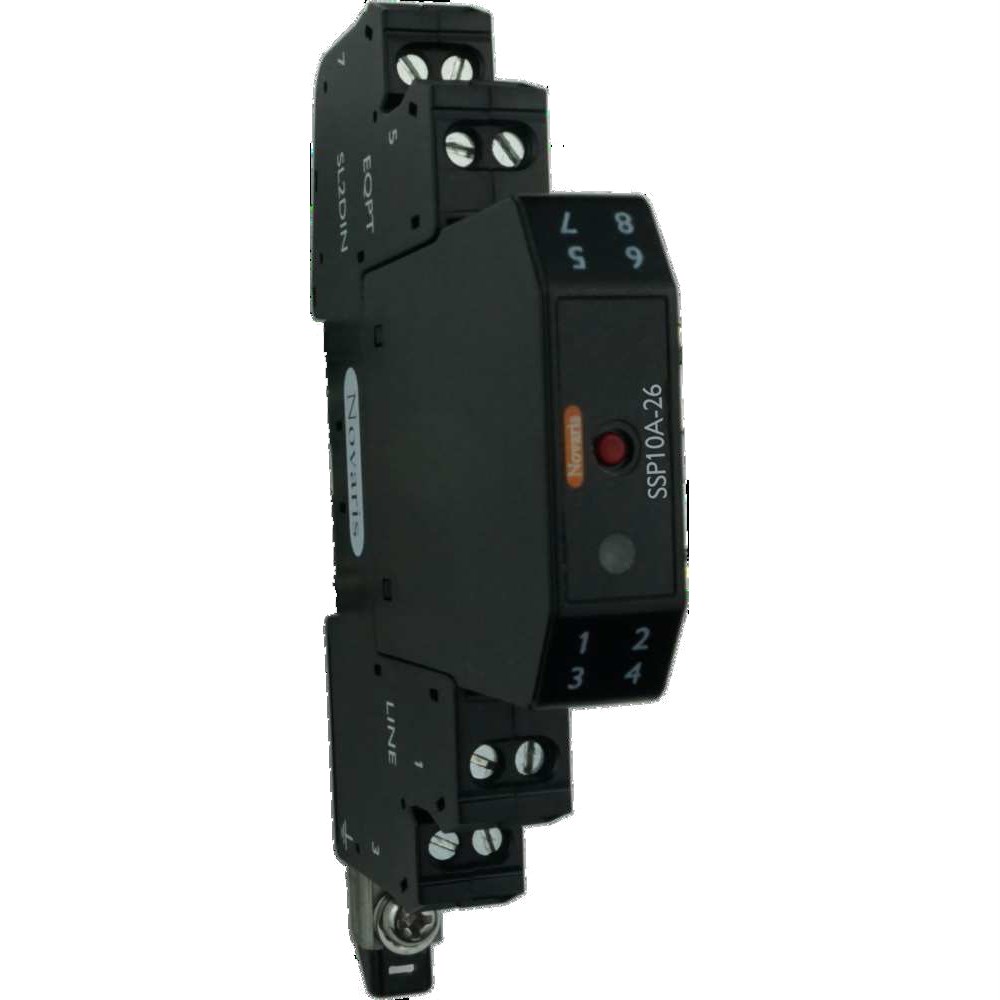

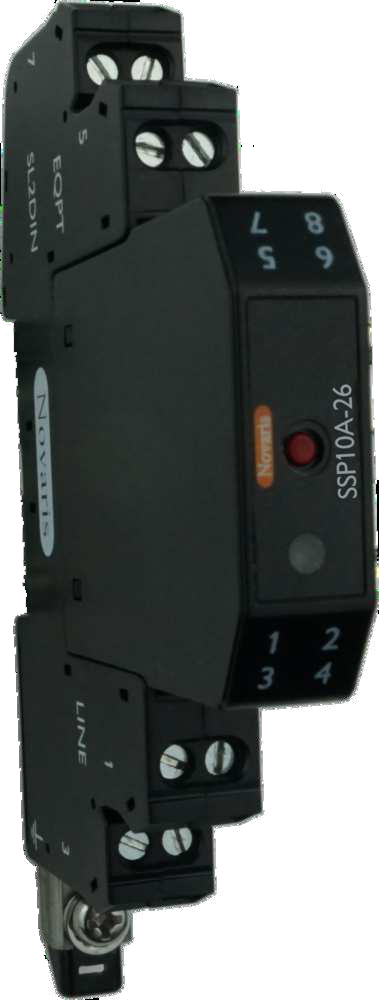

The Surge Protection Device (SPD) at hand is a robust solution designed for safeguarding electrical systems from voltage spikes and surges, particularly in industrial and commercial settings. This device offers reliable protection with its impressive technical specifications, ensuring the safety and longevity of your equipment.
Operating at a rated voltage of 26 VDC, this SPD can handle a substantial rated current of 7.5 kA per line and 15 kA in common mode. These figures indicate its capacity to protect against high levels of surge currents effectively. The device's discharge current capability matches the common mode current rating at 15 kA, providing comprehensive defense against transient overvoltages.
Engineered for durability, it boasts an IP20 degree of protection, making it suitable for indoor environments where dust ingress is minimal. Its compact design features dimensions of 12 mm in width, 71 mm in height, and 110 mm in depth—ideal for installations where space is constrained. The SPD mounts conveniently onto a TS35 DIN rail, simplifying integration into existing setups.
This product operates efficiently across a wide temperature range from -40 to 70 degrees Celsius and can withstand humidity levels between 5% to 95%, ensuring reliability under diverse environmental conditions. With standards compliance including IEC 61643-21, AS1768, UL497 A/B, and AS/NZS 4117 approvals, users can trust in its adherence to stringent safety guidelines.
Constructed from durable polycarbonate material weighing only 70 grams, the SPD is both lightweight and resilient. It features a rapid response time of less than five nanoseconds (<5 ns), crucial for minimizing potential damage during sudden surges.
Technically speaking, the device exhibits a capacitance of 36 nF and resistance as low as 0.02 Ohms—characteristics that contribute to its efficient performance without compromising on speed or effectiveness. The voltage protection level stands at an admirable figure of up to 95 V.
Protection modes include transverse and common modes which ensure comprehensive coverage against electrical disturbances across one pair of lines per unit—a practical configuration for various applications requiring dependable surge mitigation.
Additionally equipped with a tightening torque specification set at precisely 0.5 N-m ensures secure connections during installation while maintaining optimal contact pressure throughout operational life cycles; this adds another layer towards achieving maintenance-free operation over extended periods within specified limits dictated by industry norms like rated short circuit currents capped around ten Amperes (10 A).
Ultimately if you need peace-of-mind knowing sensitive electronic assets remain shielded amidst unpredictable power fluctuations then consider investing into such well-rounded solutions capable delivering consistent performance backed reputable certifications globally recognized within field expertise circles worldwide!
