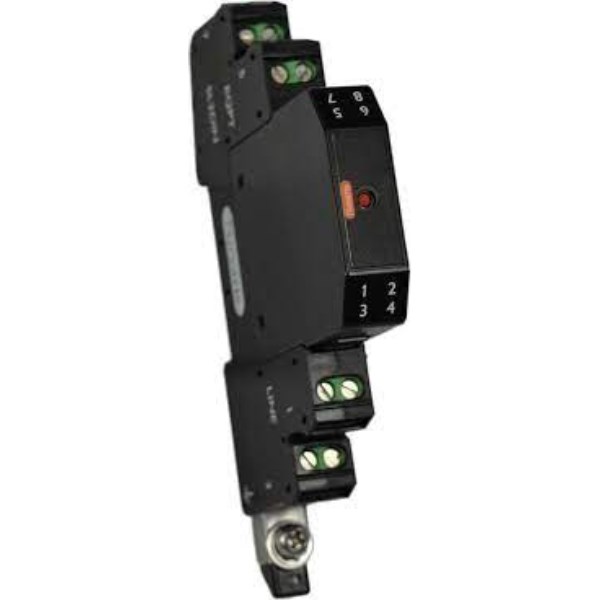

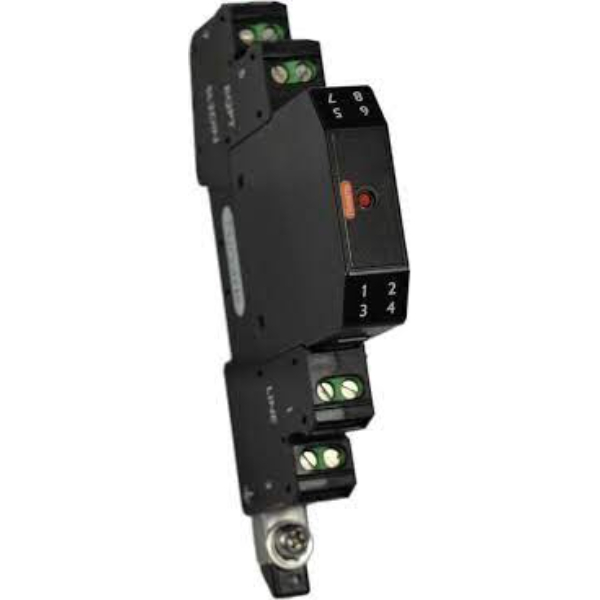

In the world of industrial and commercial applications, safeguarding your signal lines is a critical task. The Signal Line Protector detailed here offers a robust solution designed for reliability and efficiency in demanding environments.
This protector handles a rated voltage of 38 VDC, making it suitable for various electrical systems requiring precise voltage management. With an impressive rated current capacity of 7.5 kA per line and 15 kA in common mode, it ensures robust protection against surges that could potentially damage sensitive equipment.
The device's IP20 degree of protection signifies its ability to withstand solid objects larger than 12 mm, although it's not resistant to liquids. It mounts conveniently on a TS35 DIN rail, facilitating easy integration into existing setups without hassle. Measuring just 12 mm in width, 71 mm in height, and with a depth of 110 mm, this compact design optimizes space utilization while ensuring effective performance.
Engineered to operate efficiently across a broad temperature range from -40°C to 70°C, this protector is versatile enough for use in diverse climates and conditions. Its adherence to standards like IEC 61643-21, AS1768, UL497 A/B, and AS/NZS 4117 underscores its compliance with international safety norms—an assurance of quality you can trust.
Weighing only 55 g and constructed from durable polycarbonate material, the protector combines lightweight convenience with sturdy resilience. Its rapid response time of less than five nanoseconds ensures quick action against transient overvoltages—a crucial feature when protecting sensitive electronic components.
Humidity tolerance between 5% and 95% allows it to function effectively even in varying moisture levels. With a tightening torque requirement set at a manageable 0.5 N-m during installation or maintenance tasks, setup remains straightforward without compromising security.
Technical specifications also include a capacitance value of 13 nF and resistance at just 0.02 Ohm—parameters indicating minimal interference with the normal operation while providing necessary protection levels up to approximately155 V.
Designed for both transverse and common modes protection across one pair of lines with rated short circuit current handling capability up till10 A; this product stands out as an efficient safeguard against electrical anomalies typical within dynamic industrial settings where precision matters most.
