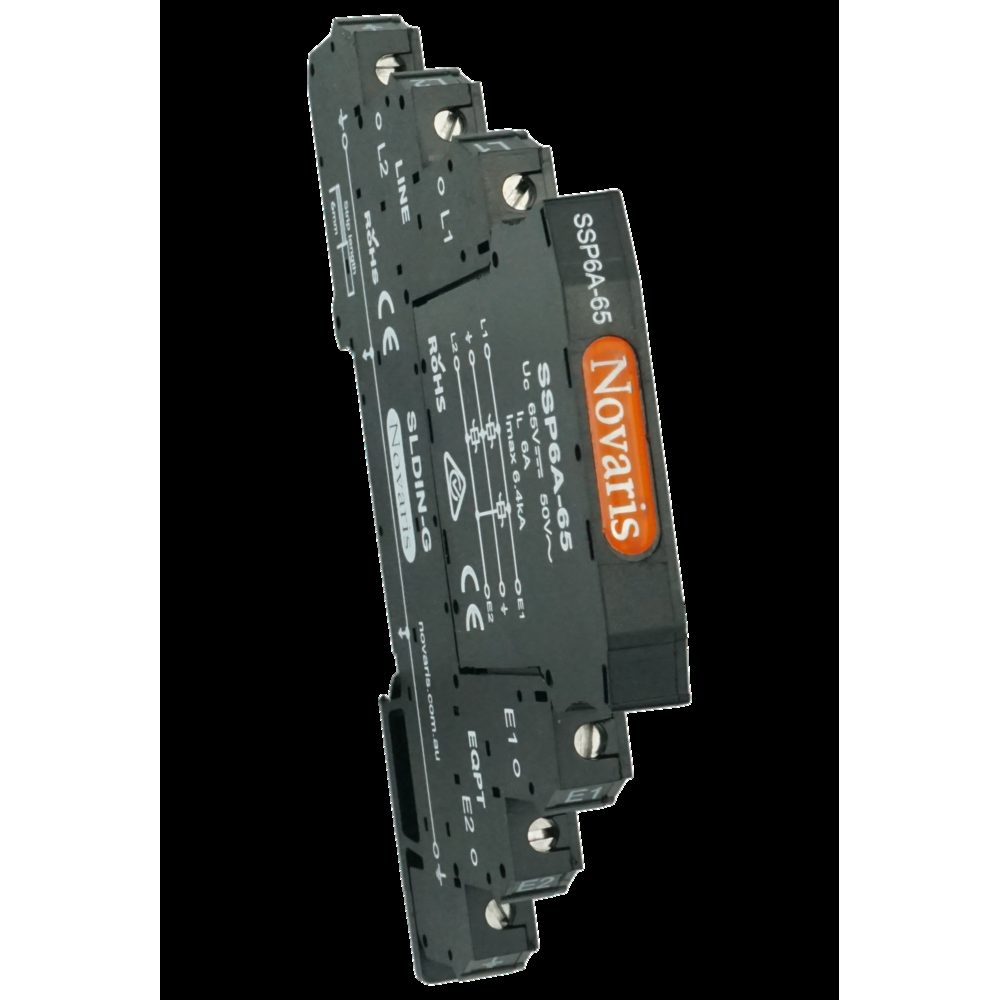

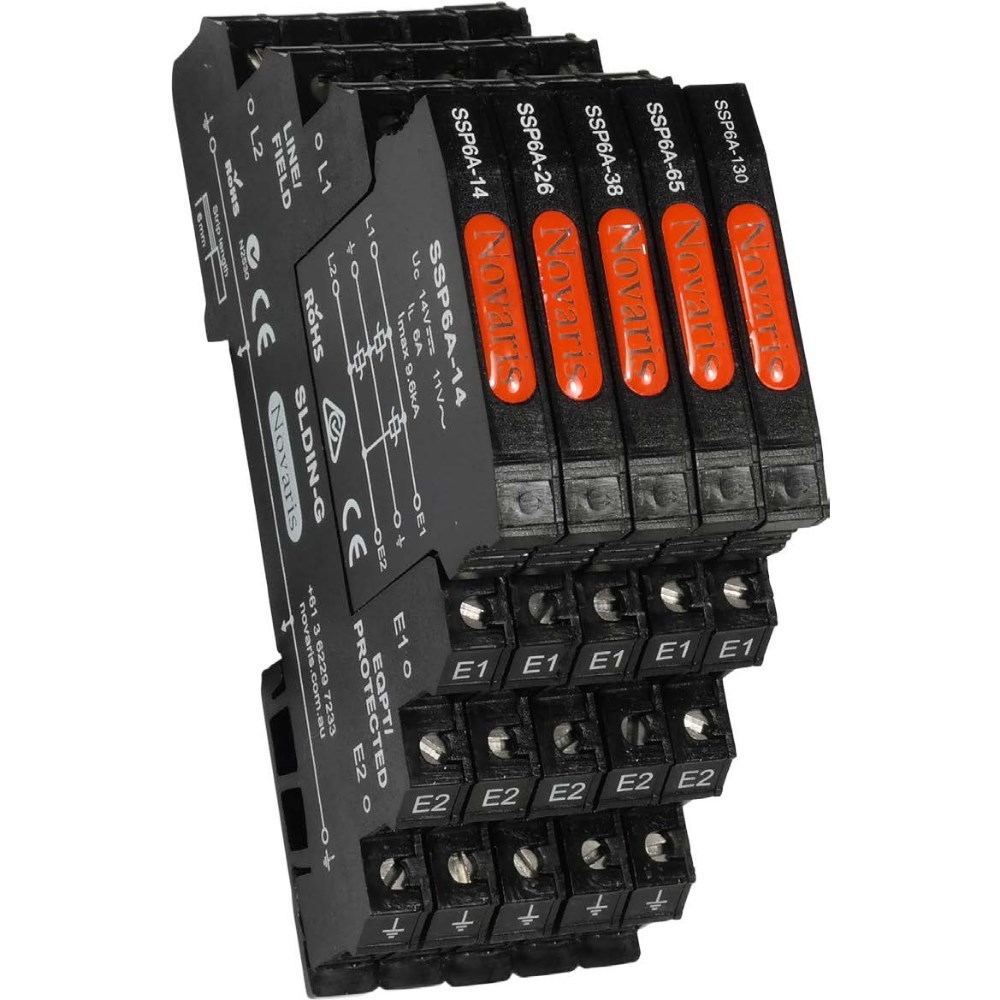

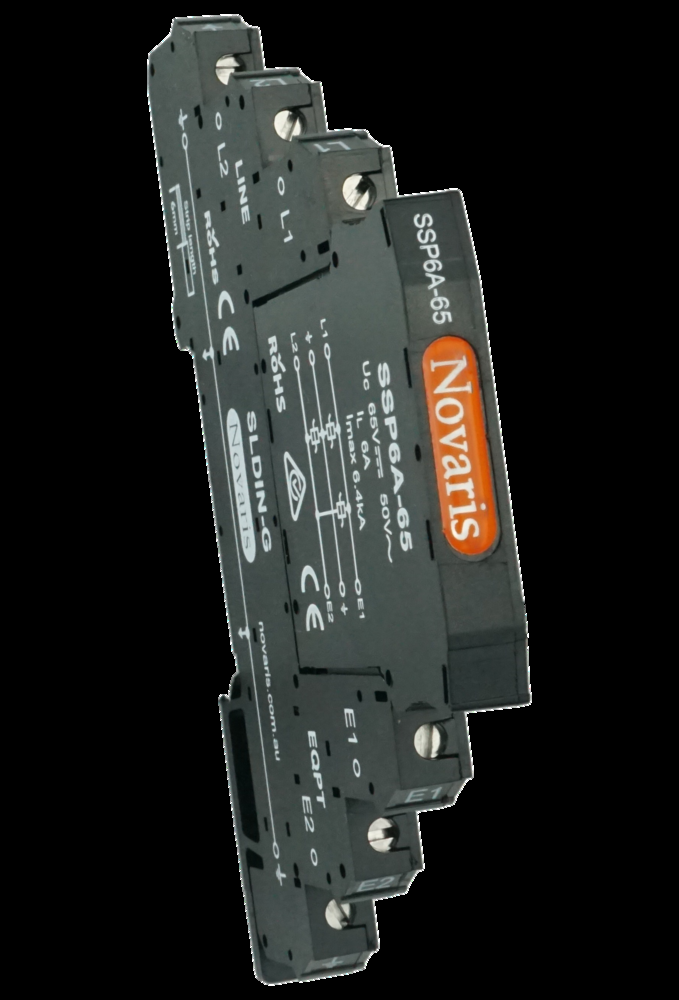

When it comes to safeguarding your signal lines in industrial and commercial environments, choosing the right protector is crucial. This Signal Line Protector offers robust protection for twisted pair signaling systems, ensuring reliability even under challenging conditions.
Designed with a rated voltage of 65 VDC and capable of handling a rated current of 4.8 kA per line and 9.6 kA in common mode, this device provides exceptional performance against surges. The IP20 degree of protection ensures that the unit remains safe from solid objects larger than 12 mm, making it suitable for indoor applications where accidental contact with live parts must be avoided.
Installation is straightforward thanks to its TS35 DIN Rail mounting type, allowing for secure attachment within control panels or distribution boards. With compact dimensions—7 mm width, 102 mm height, and 68 mm depth—this protector efficiently utilizes space without compromising on functionality.
Operating within a temperature range from -40 to 70 degrees Celsius, this product is versatile enough to perform reliably across various environmental conditions. Its compliance with standards such as IEC 61643-21:2012 and AS/NZS 1768:2007 underscores its quality and adherence to industry norms.
Weighing just 35 grams and constructed from durable polycarbonate material, this protector is both lightweight and resilient. It features a swift response time of less than 5 nanoseconds, ensuring rapid intervention during surge events. The unit operates effectively in humid environments ranging from 5% to 95% humidity.
For optimal performance during installation, apply a tightening torque of approximately 0.5 N-m when securing connections. With an electrical capacitance of 4 nF and resistance as low as 0.02 Ohm, it minimizes signal interference while maintaining integrity across communication lines.
The Voltage Protection Level stands at an impressive 130 V, providing ample headroom above typical operating voltages for enhanced safety margins against transient overvoltages. Utilizing modes of protection that include both transverse and common modes ensures comprehensive defense against diverse types of electrical disturbances.
Its base type G direct earthing facilitates efficient grounding strategies essential for dissipating unwanted energy safely into the earth system—critical in maintaining overall network stability.
This Signal Line Protector is engineered specifically for one pair configurations commonly found in twisted pair signaling setups prevalent throughout modern infrastructure projects today—a testament not only towards meeting but exceeding expectations set forth by rigorous testing protocols like UL1499 (3rd Edition), UL497B ITU-T K44:2012 AS/CA S008:2010 AS/NZS4117:1999 among others; guaranteeing peace-of-mind knowing you're investing wisely into proven solutions designed around real-world needs aligned closely alongside Australian standards requirements every step along way!
