Specifications

Dimensions (mm)	7W x 68H x 102L
Lightning Impulse Current (10/350 µs) - Iimp (kA)	1.25 (per line), 2.5 (common mode)
Maximum Continuous Operating Voltage MCOV AC (V)	11
Maximum Continuous Operating Voltage MCOV DC (V)	16
Maximum Discharge Current (8/20µs) - Imax (kA)	5 (per line), 10 (common mode)
Operational Temperature Range (°C)	-55 to 70
No. of Pairs	1
Voltage Protection Level (3kA 8/20µs) - Up (kV)	0.030 (L-L), 0.6 (L-PE)
Maximum Load Current - I? (A)	0.25
Base Option	EC90 (Indirect Earthing)
Weight (g)	35

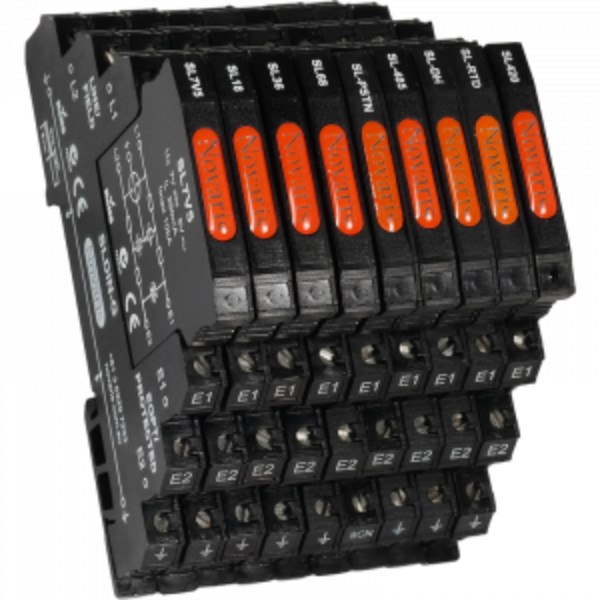

Product Type	Slimline Signal Line Protector
Brand	NOVARIS
Series	SL
Base Type	EC90 Indirect Earthing
Capacitance	18 pF
Connection Type	Series
Degree of Protection	IP20
Depth	68 mm
Height	102 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Pairs	1
Operational Temperature	-55 to 70 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage	16 VDC
Resistance	8.2 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
Suitable For Use With	Twisted Pair Signaling
Tightening Torque	0.5 N-m
Voltage Protection Level	30 V
Weight	35 g
Width	7.5 mm
