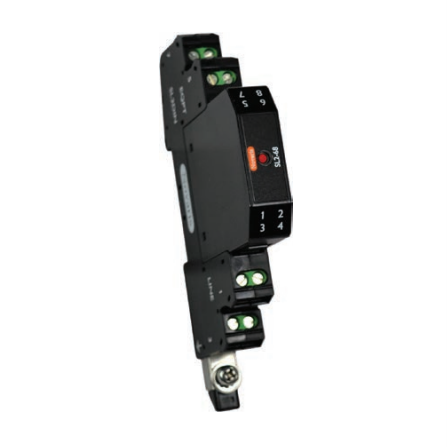

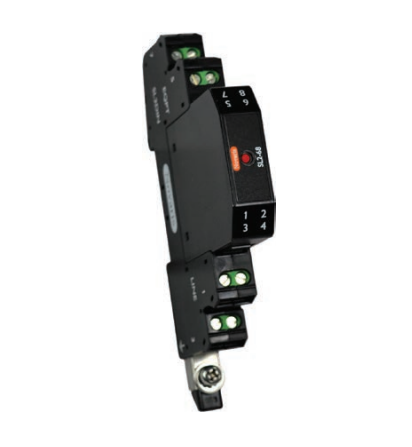

When it comes to safeguarding your electrical systems from unexpected surges, this Surge Protector stands as a reliable choice for industrial and commercial applications. Designed with precision, it offers robust protection with a rated voltage of 34 VDC and can handle a substantial current of 10 kA per line and 20 kA in common mode. This makes it an ideal solution for environments that demand consistent performance under challenging conditions.
The surge protector features a screw cage connection type, ensuring secure installation on TS35 DIN rails. With dimensions of 12 mm in width, 71 mm in height, and 110 mm in depth, its compact design allows for easy integration into existing setups without demanding excessive space. The unit's weight is a mere 70 grams, further simplifying handling during installation.
Built to withstand harsh environments, the device operates efficiently across temperatures ranging from -40 to 70 degrees Celsius. Its IP20 degree of protection ensures safety against solid objects larger than 12 mm while maintaining operational integrity within humidity levels of 5-95%. The polycarbonate material construction enhances durability while keeping the unit lightweight.
This surge protector complies with several standards including IEC 61643-21, AS1768, UL497 A & B, AS/NZS4117, and AS7708—assuring users of its adherence to rigorous safety and performance benchmarks. The response time is impressively swift at less than five nanoseconds (ns), providing immediate defense against transient voltage spikes.
For technical specifications enthusiasts: the device has a capacitance of 32 pF and resistance measuring at 3.9 Ohms; these features contribute to its effective suppression capabilities. It supports one pair line configuration with transverse and common modes protection—a comprehensive approach that caters to diverse surge scenarios.
The base type EC90 indirect earthing further complements the product's protective measures by facilitating efficient grounding pathways essential for dissipating excess voltage safely away from sensitive equipment components. Additionally, the tightening torque requirement is set at just 0.5 N-m—ensuring ease during setup without compromising on connection stability.
In summary: if you're seeking dependable surge protection tailored specifically towards Australian technical requirements—this product offers both peace-of-mind assurance alongside practical functionality designed explicitly around industry needs today!
