Specifications

Dimensions (mm)	12W x 71H x 110D
Response Time (ns)	<5
Enclosure Material	Polycarbonate
Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
Weight (g)	55
Mounting Method	TS35 DIN Rail
Minimum Relative Humidity	5%
Operating Humidity	95%
Maximum Continuous Voltage DC (V)	68
Maximum Continuous Voltage AC (V)	50
Maximum Discharge Current (8/20µs) (kA)	10
No. of Lines Protected	1 pair

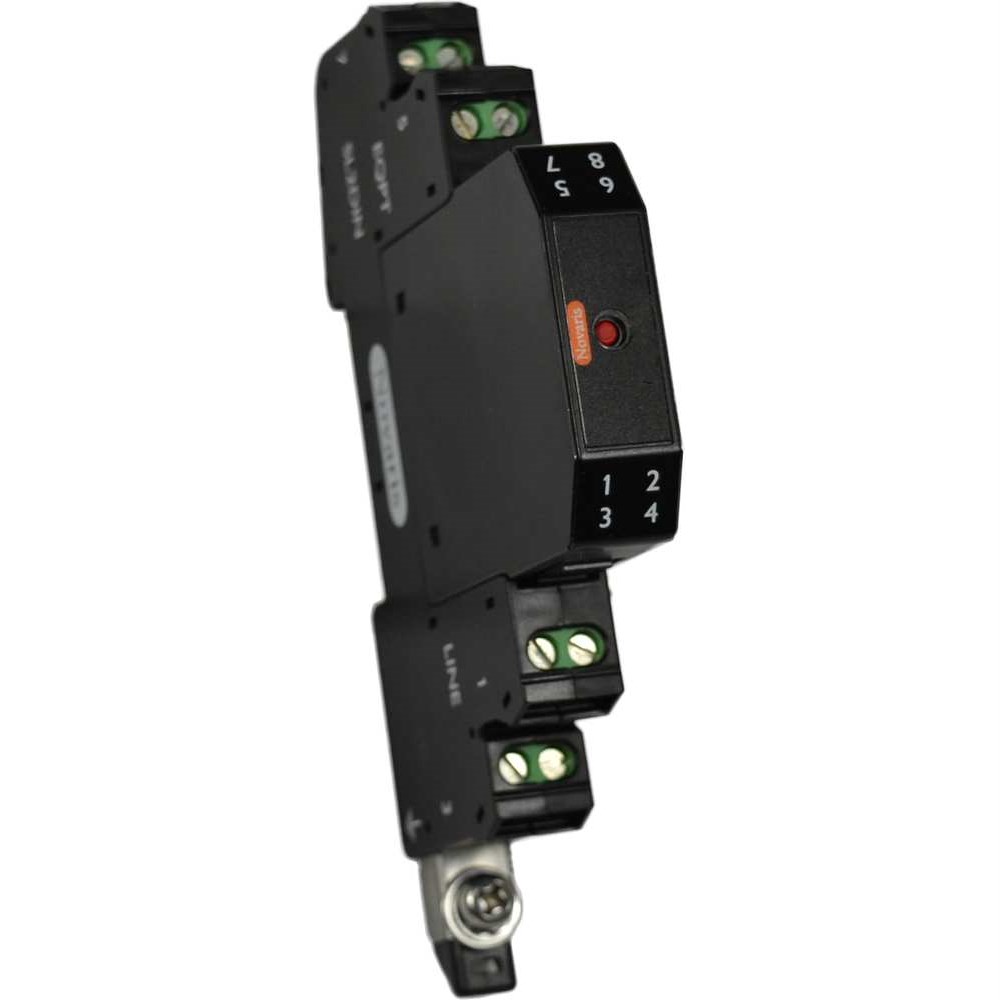

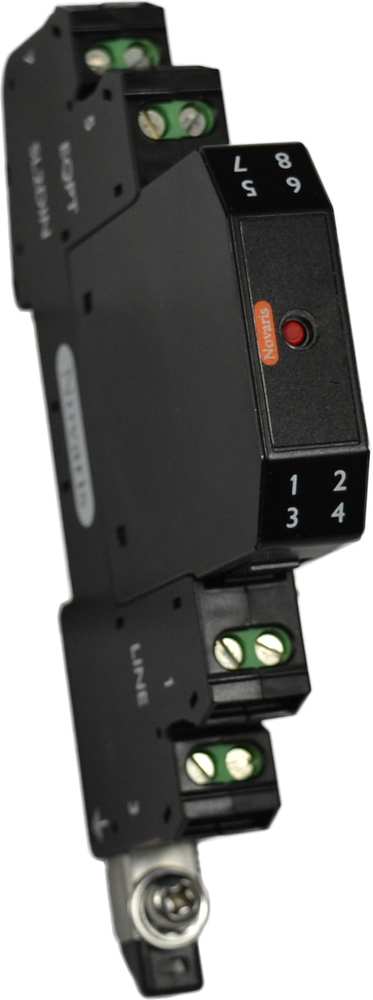

Product Type	Signal Surge Protection With Base and Alarm
Brand	NOVARIS
Capacitance	2 nF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	110 mm
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Short Circuit Current	2.5 A
Rated Voltage	68 VDC
Resistance	0.06 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117
Terminal Type	Screw cage
Tightening Torque	0.5 N-m
Voltage Protection Level	140 V
Weight	55 g
Width	12 mm
