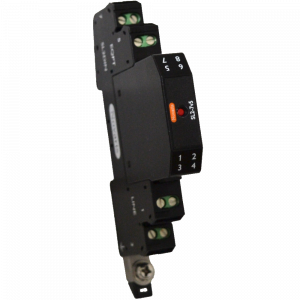

For professionals in the electrical engineering and automation sectors, selecting a surge protector that meets specific technical standards is crucial. This surge protector is designed to safeguard your systems with precision and reliability. Operating at a rated voltage of 68 VDC, it effectively handles surges with a rated current capacity of 10 kA per line and up to 20 kA in common mode.
The unit features a screw cage connection type, ensuring secure and straightforward installation on a TS35 DIN rail. Its compact dimensions—12 mm width, 71 mm height, and 110 mm depth—make it an ideal fit for space-constrained environments without compromising performance.
Engineered to withstand harsh conditions, this surge protector operates efficiently within an extensive temperature range from -40 to 70 degrees Celsius. It maintains its protective capabilities in humidity levels ranging from 5% to 95%, providing robust protection regardless of environmental challenges.
This device adheres to multiple international standards including IEC 61643-21, AS1768, UL497 A/B, and AS/NZS4117, assuring compliance with recognized safety and performance benchmarks. With an IP20 degree of protection rating, it offers reliable defense against solid objects larger than 12 mm but should be housed appropriately for optimal operation.
Crafted from durable polycarbonate material and weighing just 55 grams, this surge protector combines lightweight design with resilience. Its response time is impressively swift at less than five nanoseconds (ns), minimizing potential downtime during electrical disturbances.
Key specifications include a capacitance of 2 nF and resistance measured at only 0.06 Ohm. The device's voltage protection level stands at a robust 140 V while offering both transverse and common modes of protection for comprehensive coverage against surges.
Designed for one pair line configurations with a rated short circuit current capability of up to 2.5 A, this surge protector ensures precise functionality tailored to industrial needs. Installation requires minimal effort thanks to the specified tightening torque of just 0.5 N-m.
In summary, this surge protector provides efficient safeguarding solutions suitable for various industrial applications where reliability cannot be compromised by external electrical interferences or environmental factors.
