Specifications

Dimensions (mm)	12W x 110H x 71D
Maximum Load Current - I? (A)	0.5
Maximum Continuous Voltage DC (V)	7
Maximum Continuous Voltage AC (V)	6
Maximum Discharge Current (8/20µs) (kA)	10 per Line

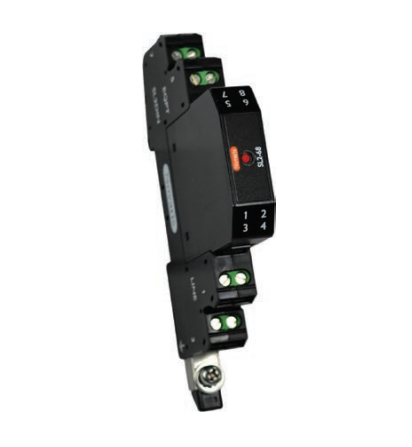

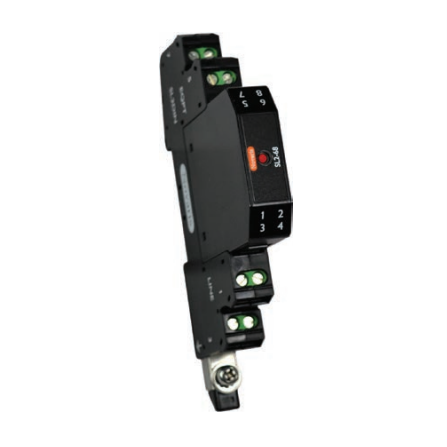

Product Type	Signal Surge Protection With Base and Alarm Output
Brand	NOVARIS
Capacitance	32 pF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	110 mm
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Short Circuit Current	500 mA
Rated Voltage	7 VDC
Resistance	3.9 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117, AS7708
Tightening Torque	0.5 N-m
Voltage Protection Level	15 V
Weight	70 g
Width	12 mm
