Specifications

Dimensions (mm)	7W x 68H x 102D
Operational Temperature Range (°C)	-40 to 70
Response Time (ns)	5
Enclosure Material	Polycarbonate
Weight (g)	35
Maximum Continuous Voltage DC (V)	200
Maximum Continuous Voltage AC (V)	140
Maximum Discharge Current (8/20µs) (kA)	5

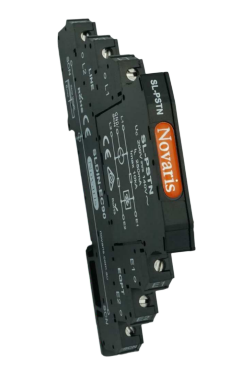

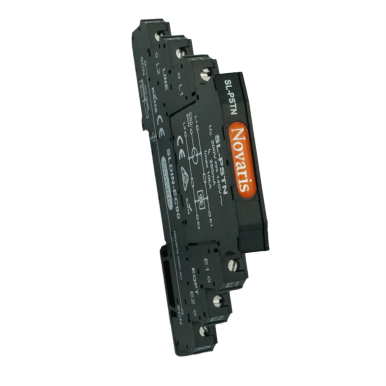

Product Type	Slimline Signal Line Protector
Brand	NOVARIS
Capacitance	18 pF
Connection Type	Series
Degree of Protection	IP20
Depth	68 mm
Height	102 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Pairs	1
Operational Temperature	-55 to 70 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Short Circuit Current	250 mA
Rated Voltage	180 VDC
Resistance	8.2 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
Tightening Torque	0.5 N-m
Voltage Protection Level	220 V
Weight	35 g
Width	7.5 mm
