Specifications

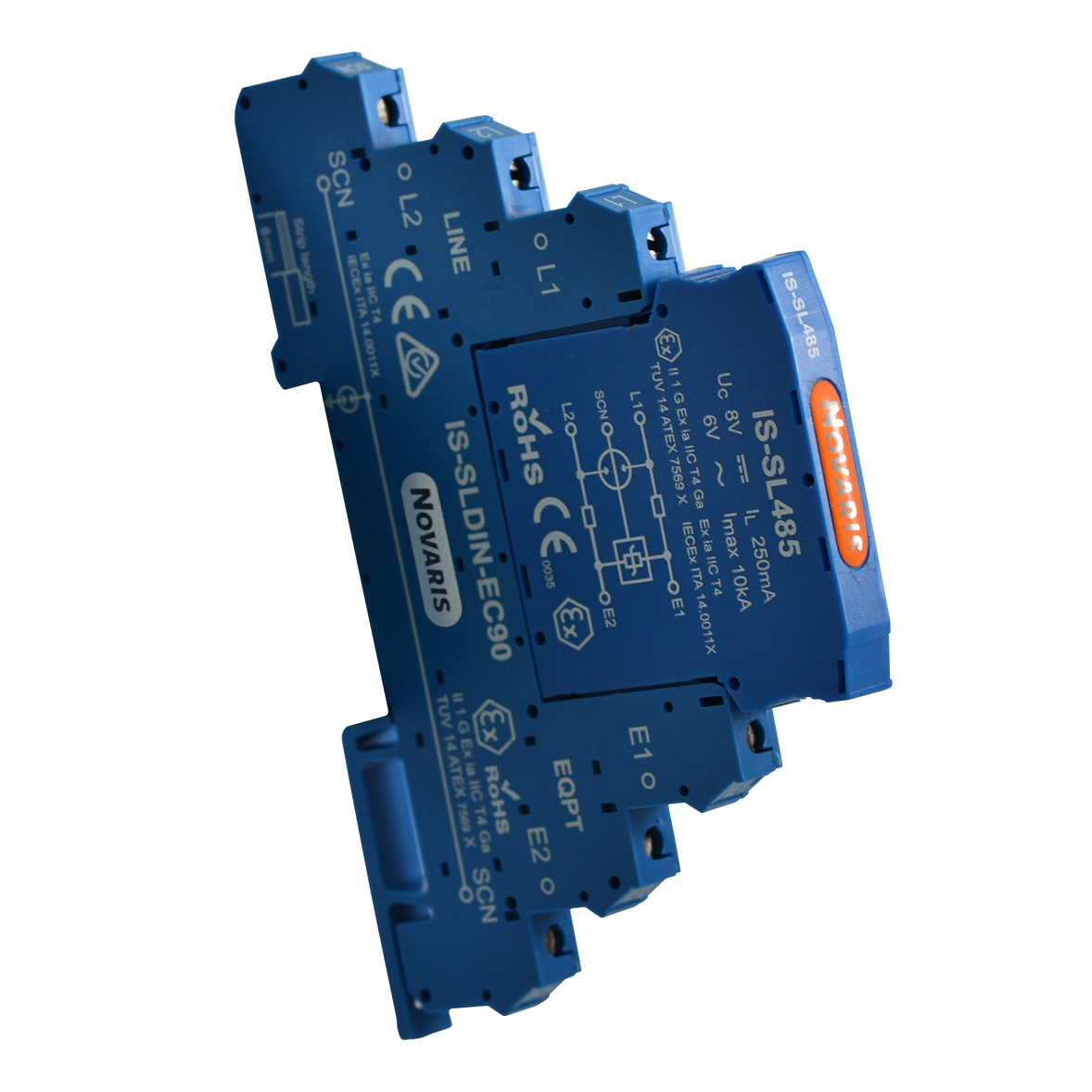

Product Type	Signal Surge Protector With Base
Brand	NOVARIS
Base Type	EC90 Indirect Earthing
Capacitance	20 pF
Degree of Protection	IP20
Depth	102 mm
Height	68 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-20 to 40 deg C
Rated Current	5 kA (Per Line), 10 kA (Common Mode)
Rated Power	1.3 W
Rated Short Circuit Current	250 mA
Rated Voltage	8 VDC
Resistance	3.9 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 60079-0, IEC 60079-11, IEC 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd Edition and UL 497B, ITU-T K.44: 2012
Tightening Torque	0.5 N-m
Voltage Protection Level	30 V
Weight	35 g
Width	7 mm
