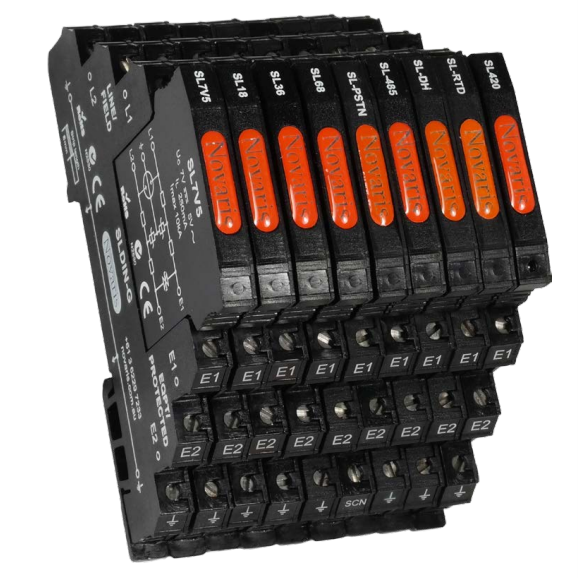

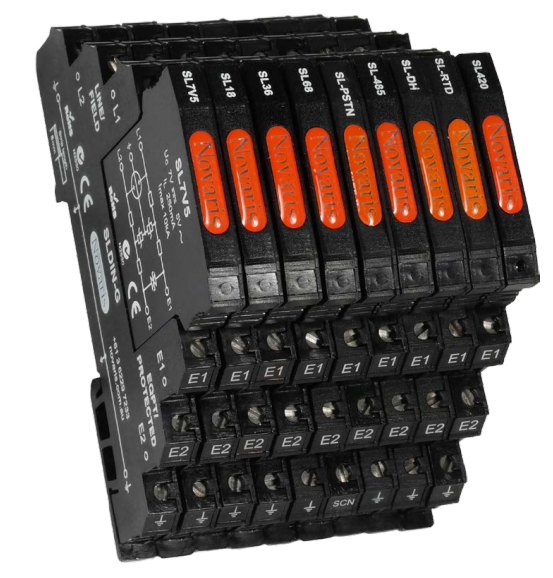

When it comes to safeguarding your electrical systems from unpredictable surges, this Surge Protector stands as a reliable choice. Engineered with precision for industrial and commercial applications, it offers robust protection against voltage spikes, ensuring the longevity and safety of your equipment.
Designed for efficiency, this surge protector operates at a rated voltage of 3 VDC. It provides an impressive rated current capacity of 5 kA per line and 10 kA in common mode. This ensures that even during significant power disturbances, your systems remain protected.
The device boasts an IP20 degree of protection, making it suitable for environments where solid objects larger than 12 mm might be present. Its compact design is optimized for space-saving installations on TS35 DIN rails. With dimensions of just 7.5 mm in width, 102 mm in height, and a depth of 68 mm, it fits seamlessly into tight spaces without compromising performance.
In terms of durability across various conditions, this surge protector operates effectively within a temperature range from -55 to 70 degrees Celsius and can withstand humidity levels between 5% to 95%. These features make it adaptable to diverse environmental conditions encountered in Australia’s varied climate zones.
Safety standards are paramount in any technical product assessment. This device meets rigorous international standards including IEC 61643-21:2012 and UL certifications such as UL1499 (3rd Edition) and UL497B. Additionally, compliance with local Australian standards like AS/NZS1768:2007 ensures its suitability for regional applications.
Constructed with durable polycarbonate material weighing only 35 grams, the unit is both lightweight and resilient. It has a swift response time of less than five nanoseconds (ns), providing immediate protection against surges the moment they occur.
Installation is straightforward with a tightening torque requirement set at just 0.5 N-m while maintaining low capacitance at only 18 pF which minimizes signal interference—a critical feature when protecting sensitive electronic equipment.
With resistance measured at just 3.9 Ohms and offering modes of protection that include both transverse and common modes, this surge protector delivers comprehensive coverage against electrical anomalies. The voltage protection level is rated at an efficient threshold of about15 V while supporting short circuit currents up to250 mA—further testament to its robustness under challenging scenarios.
This surge protector embodies reliability through its detailed engineering specifications tailored specifically for demanding environments ensuring peace-of-mind operation whether installed in remote facilities or urban infrastructures alike.
