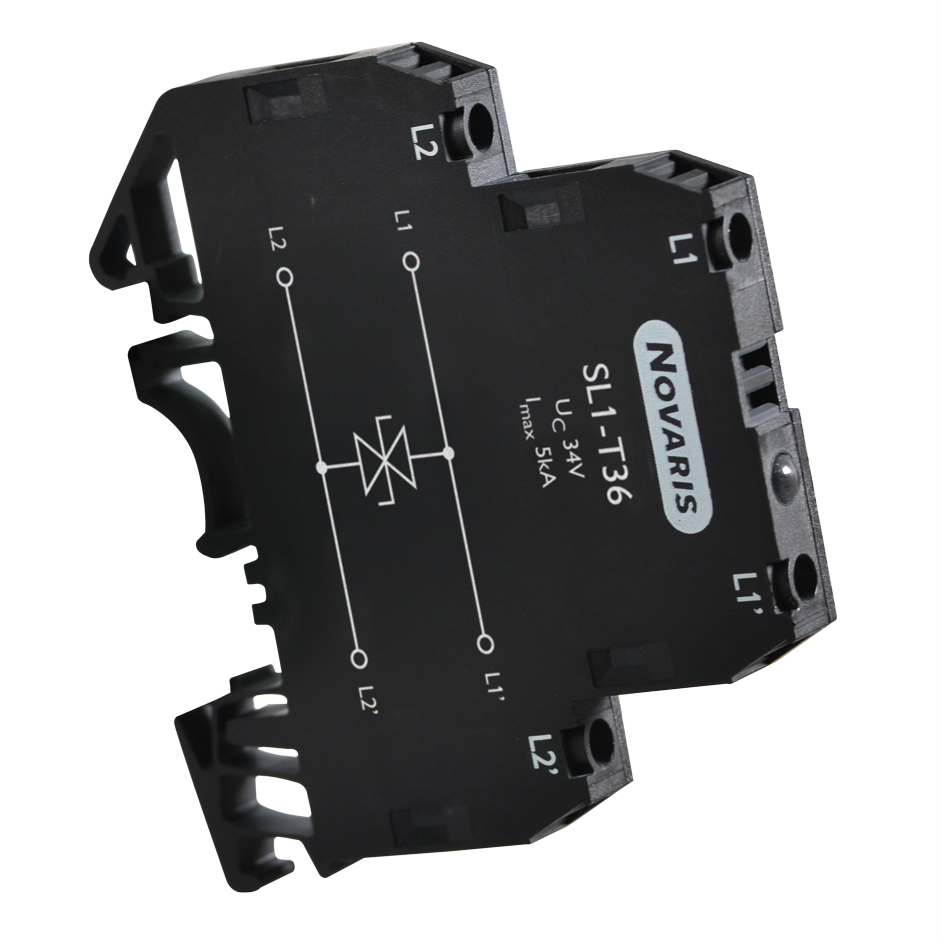

Novaris SL1-T36 Slimline Signal Line Protector 5kA 10kA 34VDC Screw Cage Universal TS32/TS35 Rail Mount 62mm H IP20

Product Code: SL1-T36

  • Rated for 34 VDC, 5 kA per line
  • IP20 protection with screw cage connection
  • Fits TS32/TS35 rail, compact 6 mm width
  • Fast response time under 5 ns
  • Complies with IEC 61643-21 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Slimline Signal Line Protector
Brand NOVARIS
Capacitance <20 pF
Connection Type Screw Cage
Degree of Protection IP20
Depth 68 mm
Height 62 mm
Material Polyamide PA66
Modes of Protection Transverse and Common Modes
Mounting Type Universal TS32/TS35 Rail
Number of Lines 1 pair
Operational Temperature -25 to 70 deg C
Rated Current 5 kA (Per Line), 10 kA (Common Mode)
Rated Voltage 34 VDC
Response Time <5 ns
Standards and Approvals IEC 61643-21
Voltage Protection Level 40 V
Weight 25 g
Width 6 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
