Specifications

No. of Poles	3
Rated Conditional Short-Circuit Current - Inc (kA)	120
Rated Current (A)	250
Rated Uninterrupted Current - Iu (A)	250
Rated Voltage AC (V)	690
Thickness (mm)	10
Suitable For	NH1
Weight (kg)	6.9
Fixing Centres (mm)	185
Maximum Operational Voltage AC (V)	690
Power Dissipation at In (W)	70
Type	Main Switch
Main Circuit Electrical Connection	Bolt Connection
Position of Control Element	Front Side
Product Type	Disconnects Fuse
Brand	ABB
Cable Entry	Side
Control Element Position	Front Side
Degree of Protection	IP41
Depth	335 mm
Electrical Connection	Bolt
Fixing Centres	185 mm
Fuse Size	NH1
Height	100 mm
Mounting Type	Busbar
Number of Poles	3
Power Loss	70 W
Rated Current	250 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1 kV
Rated Power	70 W
Rated Short Circuit Current	120 kA
Rated Voltage	690 VAC
Standards and Approvals	IEC 60947-3, RoHS, REACH, CE
Suitable For Use With	NH1 Base
Thickness	10 mm
Weight	6.9 kg
Width	590 mm

Description

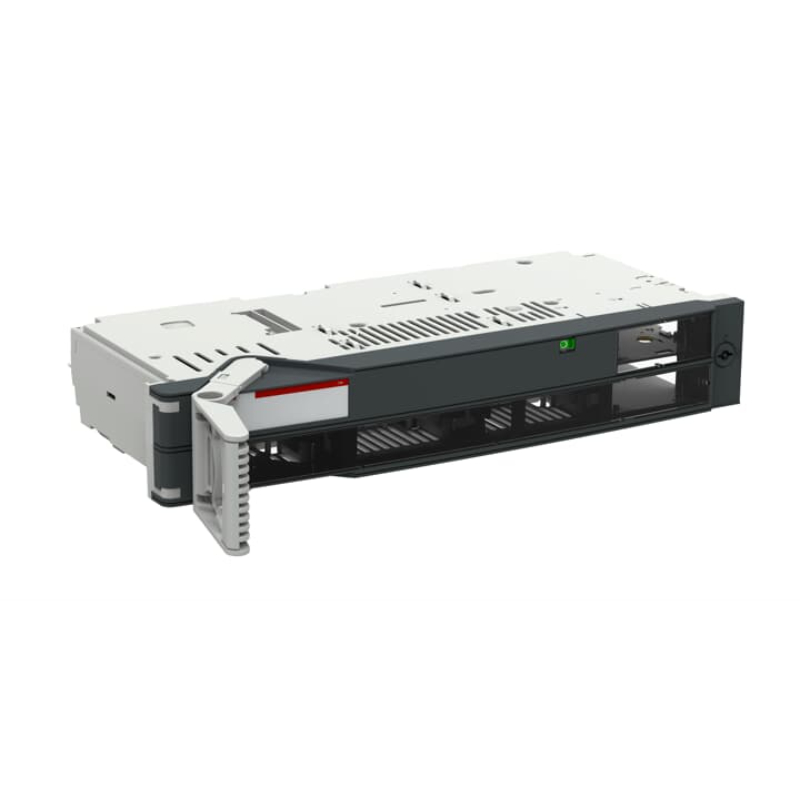

Three pole Switch Disconnector Fuse for 185mm busbar distance and 10mm busbar thickness
