Specifications

No. of Poles	3
Rated Conditional Short-Circuit Current - Inc (kA)	120
Rated Current (A)	630
Rated Uninterrupted Current - Iu (A)	630
Rated Voltage AC (V)	690
Thickness (mm)	5
Suitable For	NH3
Weight (kg)	15.51
Fixing Centres (mm)	50
Maximum Operational Voltage AC (V)	690
Power Dissipation at In (W)	240
Type	Main Switch
Main Circuit Electrical Connection	Bolt Connection
Position of Control Element	Front Side
Product Type	Disconnects Fuse
Brand	ABB
Cable Entry	Side
Control Element Position	Front Side
Degree of Protection	IP41
Depth	335 mm
Electrical Connection	Bolt
Fixing Centres	50 mm
Fuse Size	NH3
Height	200 mm
Mounting Type	Busbar
Number of Poles	3
Power Loss	245 W
Rated Current	630 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1 kV
Rated Power	240 W
Rated Short Circuit Current	120 kA
Rated Voltage	690 VAC
Standards and Approvals	IEC 60947-3, RoHS, REACH, CE
Suitable For Use With	NH3 Base
Thickness	5 mm
Weight	15.51 kg
Width	590 mm

Description

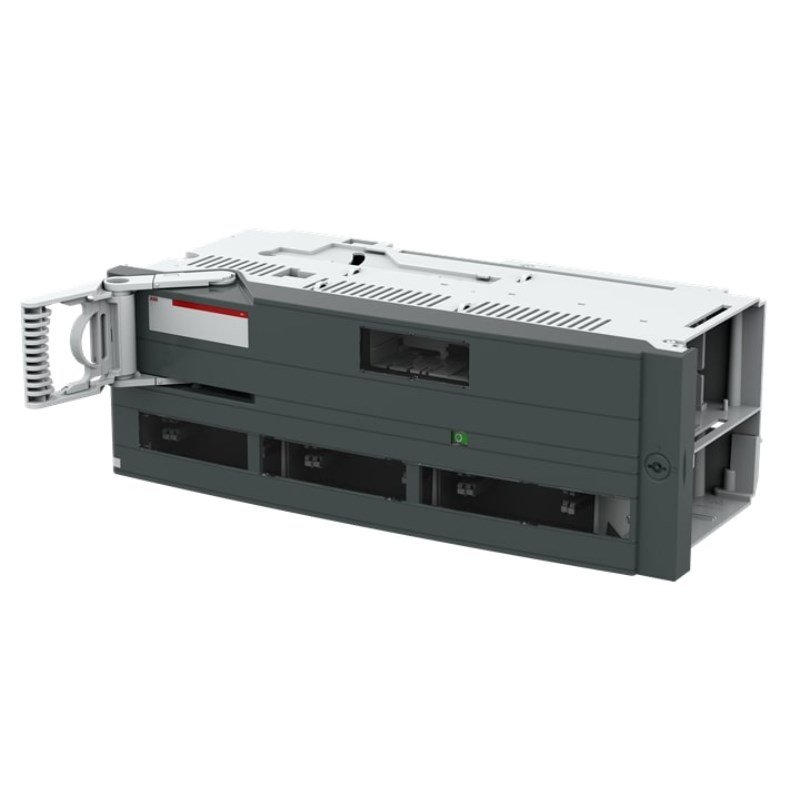

Three pole Switch Disconnector Fuse for 50mm busbar distance and 5mm busbar thickness
