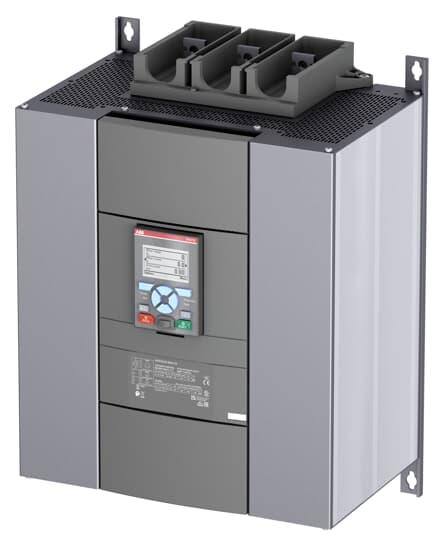

<p>The Advanced PSTX is a robust and versatile solution designed for industrial and commercial applications, offering an impressive range of features to meet diverse technical requirements. With a rated voltage range of 208-600 VAC and a rated current capacity of 470 A, this product ensures reliable performance across various operations. It supports both 50 Hz and 60 Hz frequencies, making it adaptable to different power systems.</p><p>Connectivity is a standout feature of the PSTX with its extensive communication options including Modbus RTU, Modbus TCP, EtherNet/IP, EtherCAT, DeviceNet, CANopen, Profibus, Profinet as well as BACnet-IP and BACnet-MSTP. This makes integration into existing systems straightforward while providing flexibility for future upgrades.</p><p>Its compact dimensions—361 mm in width, 493 mm in height, and 282 mm in depth—combined with a weight of just 25 kg make installation manageable even in constrained spaces. The terminal type is bar with a tightening torque specification of 35 N-m ensuring secure connections. Its green color not only stands out but aligns with many modern industrial aesthetics.</p><p>Engineered to withstand challenging environments, the PSTX operates efficiently within temperatures ranging from -25 to 60 degrees Celsius while enduring ambient conditions between -40 to 70 degrees Celsius. Despite its IP00 rating indicating no inherent protection against solid objects or moisture ingress without additional enclosures or measures.</p><p>Rated at power levels of up to 315 kW (or equivalently supporting motors up to 500 hp), the Advanced PSTX accommodates substantial electrical loads. It also provides circuit voltage at 24 VDC which enhances safety during operation.</p><p>Functionality includes sophisticated soft start capabilities with torque control and voltage ramp options along with soft stop features mirroring these controls for smooth deceleration processes. Additional functionalities like kick start sequence start current limit external contactors for reverse starting automatic restart event logging overload signal relay fault signal relay integrated electronic overload protection ensure comprehensive operational control and monitoring.</p><p>With a service factor pegged at an impressive 100%, users can be assured of maximum efficiency under continuous full-load conditions without compromising reliability or lifespan.</p><p>In summary the Advanced PSTX offers an exceptional blend of performance connectivity adaptability making it an ideal choice for those seeking robust solutions that align seamlessly with their technical needs MPN: [Not required]</p>
