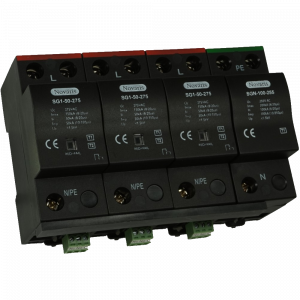

Novaris SG1-50-275 Spark Gap Surge Diverter 1 PH 150kA 275VAC Shunt TS35 Polycarbonate IP20

Product Code: SG1-50-275

  • Suitable for 275 VAC, 150 kA applications
  • IP20 protection with shunt connection
  • Mounts easily on TS35 DIN Rail
  • Fast response time of 100 ns
  • Operates in -40 to 80°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Nominal Discharge Current (8/20µs) - In (kA) 50
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 80
Response Time (ns) 100
Enclosure Material Polycarbonate
Backup fuse rating (A) 500
Dimensions (mm) 72W x 66H x 90D
No. of Ports 1
Weight (g) 500
Maximum Continuous Voltage AC (V) 275
Maximum Discharge Current (8/20µs) (kA) 150
Short Circuit Withstand Level (kA) 10
Product Type Spark Gap Surge Diverter
Brand NOVARIS
Connection Type Shunt
Degree of Protection IP20
Depth 90 mm
Fuse Rating 500 A
Height 66 mm
Humidity 5-95%
Material Polycarbonate
Modes of Protection L-N, N-PE
Mounting Type TS35 DIN Rail
Number of Ports 1
Operational Temperature -40 to 80 deg C
Phase 1
Rated Current 150 kA
Rated Short Circuit Current 10 kA
Rated Voltage 275 VAC
Response Time 100 ns
Weight 500 g
Width 72 mm
