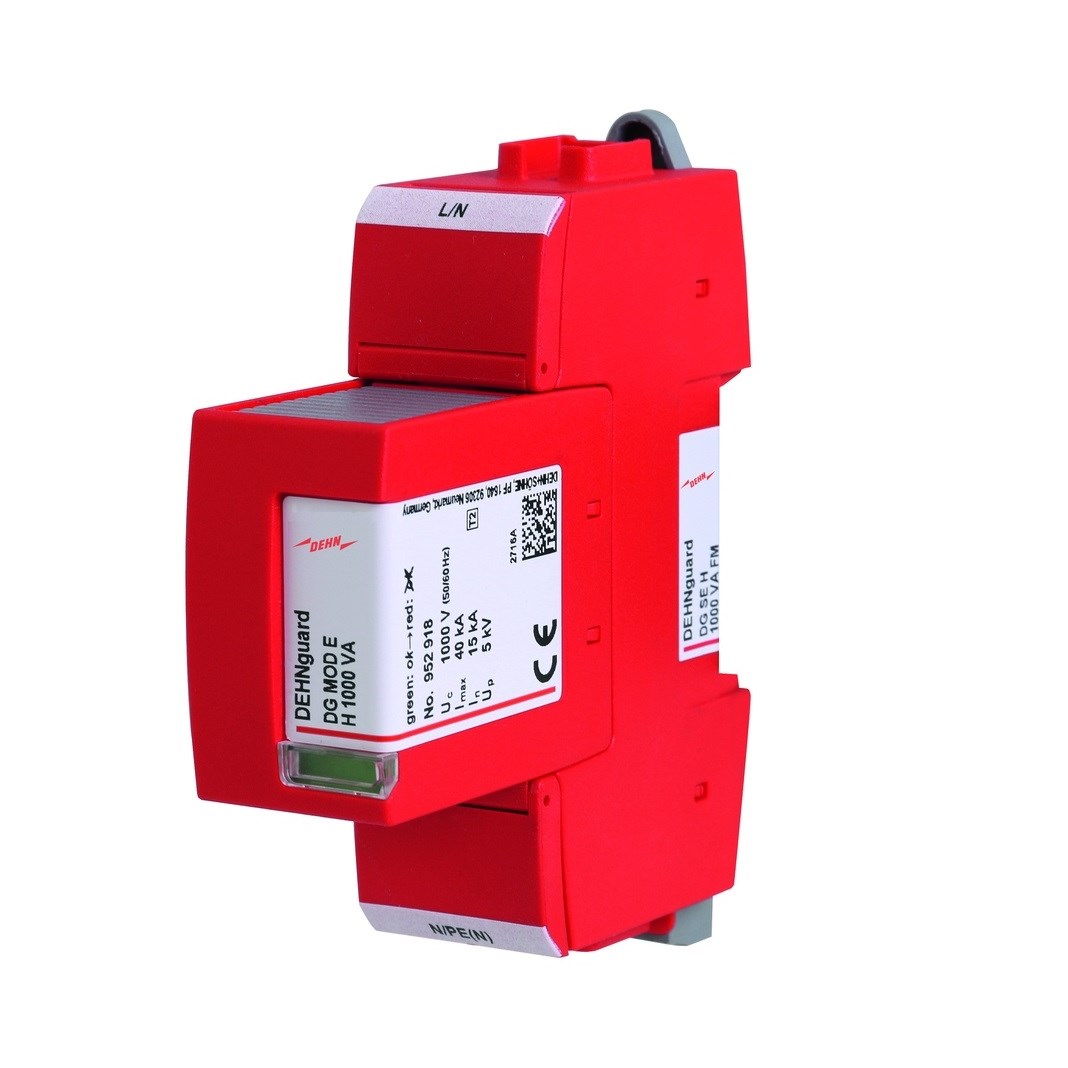

DEHN DGSEH1000VAFM Type-2 Surge Arrester 1-P 15kA 690V 35mm DIN Rail Thermoplastic IP20

Product Code: DGSEH1000VAFM

  • Surge protection for 690 V systems
  • Fast response time of <= 25 ns
  • Compact design: 27 mm wide
  • IP20-rated thermoplastic housing
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Article No. 952940
Dimensions (mm) 0.09W x 0.11L x 0.03D
Maximum Continuous Operating Voltage MCOV AC (V) 1000
Maximum Discharge Current (8/20µs) - Imax (kA) 40
No. of Modules 1.5
No. of Poles 1P+N/PE(N)
Nominal Discharge Current (8/20µs) - In (kA) 15
Nominal Voltage AC (V) 690
Signal C/O Contact Yes
SPD Type Type 2
Weight (kg) 0.23
Circuit Type DB
Response Time (ns) &#8804; 25
Operating State/Fault Indication Green/Red
Short-Circuit Withstand Capability - Iscc? (kArms) 25
Product Type Type-2 Surge Arrester
Brand DEHN
Cross Section 1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection IP20
Depth 76 mm
Height 98 mm
Interrupt Rating 100 A
Material Thermoplastic
Mounting Type 35 mm DIN Rail
Number of Poles 1
Number of Ports 1
Operational Temperature -40 to 80 deg C
Rated Current 15 kA
Rated Short Circuit Current 25 kA
Rated Voltage 690 V
Response Time <= 25 ns
SPD Class Type 2
Standards and Approvals EN 61643-11
Voltage Protection Level <=5 kV
Weight 207 g
Width 27 mm

Description

Single-pole DEHNguard SE H LI surge arrester comprising a base part and plug-in protection modules. High discharge capacity thanks to powerful zinc oxide varistors. For protecting low-voltage consumer&#180;s installations against surges.
