Specifications

Product Type	Local Area Network Protectors
Brand	Novaris
Series	RJ45-24CAT6
Connection Type	Series
Dimensions	482 x 44 x 80 mm
Housing Material	Steel
Length	482 mm
Modes of Protection	Transverse and Common
Mounting Type	Rack mount
Response Time	<5ns
Standards and Approvals	IEC 61643-21, AS 1768, UL 497B, ITU-T K.44, AS/CA S008, AS/NZS 4117, AS/CA S009
Terminal Type	RJ45 Socket
Weight	1.85 kg
Maximum Continuous Voltage DC	6V
Maximum Continuous Voltage AC	4V
Maximum Discharge Current 8/20µs	5kA
Maximum Load Current	1A
Maximum Poe Voltage DC	80VDC
Maximum Temperature	70°C
No of Lines	24 x RJ45 / 4 pairs & shield
Operational Temperature Range	-40°C to +70°C
Voltage Protection Level Up	@ 1 kV/ µs - 20V @ 3 kA 8/20 µs - 9V @ 100 V/s - 350V
Line Resistance	0.1O
Line Inductance	0.2µH
Earthing	Earth terminal

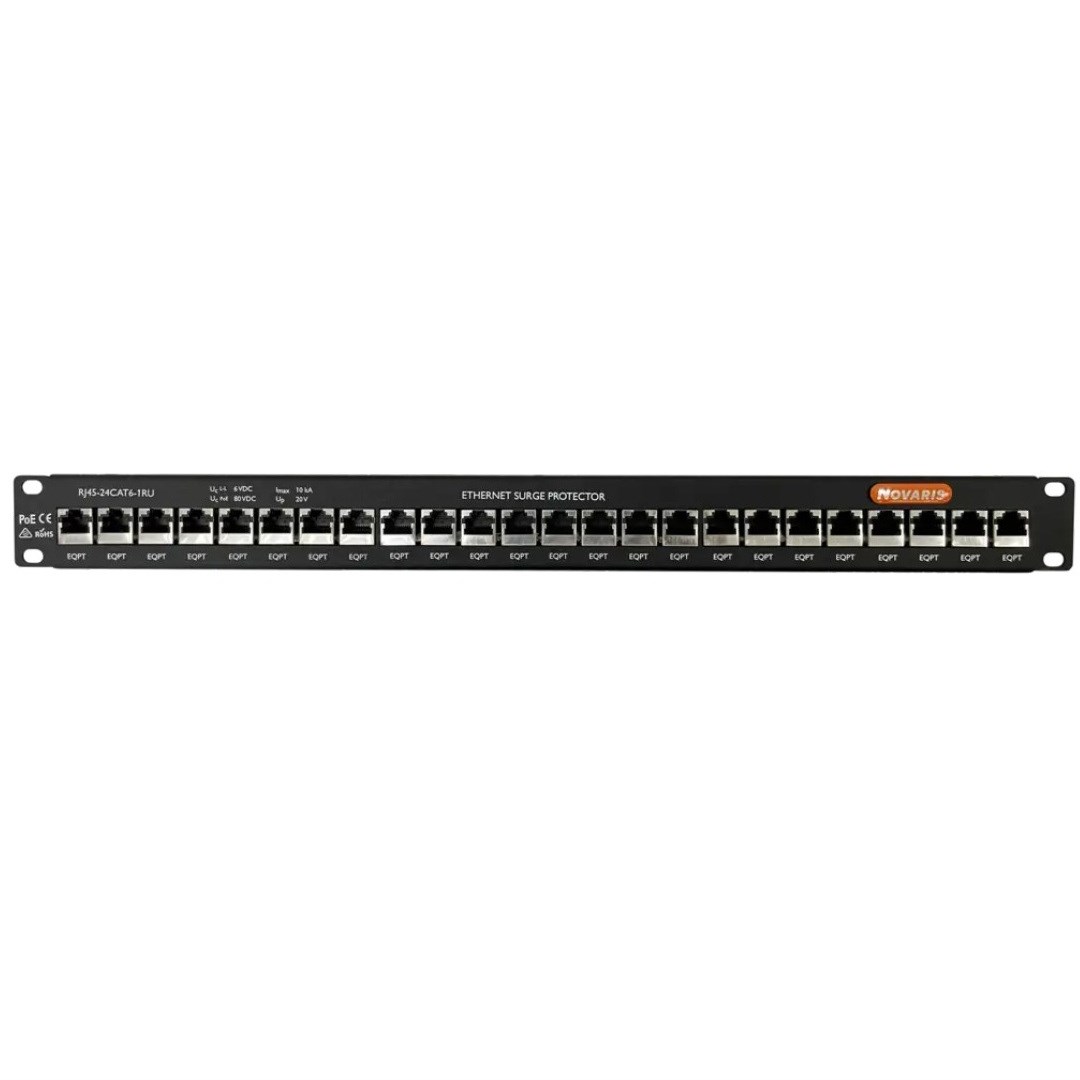

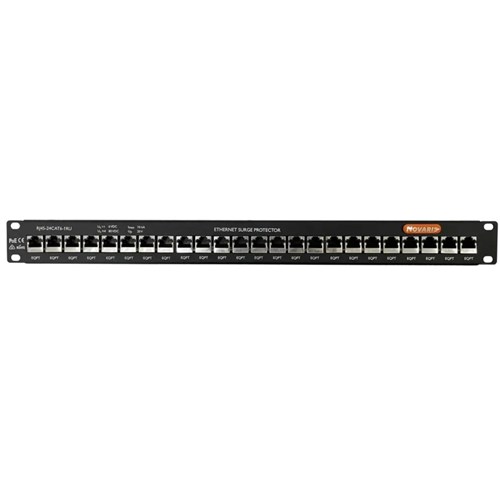

SPD 24 PORT RJ45 CONNECTORSCAT6 AND POE 1RUNOVARIS
