Specifications

Dimensions (mm)	36W x 90H x 66D
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Voltage AC (V)	230
Reference No.	952130
Suitable For	Power Supply Systems
Weight (kg)	0.247
Breaking Capacity AC (kA)	25
Lightning Impulse Current (10/350 µs) - Iimp (kA)	12
Maximum Discharge Current (8/20µs) - Imax (kA)	40
No. of Conductors	2
Mounting Method	DIN Rail 35mm
Maximum Continuous Voltage AC (V)	320

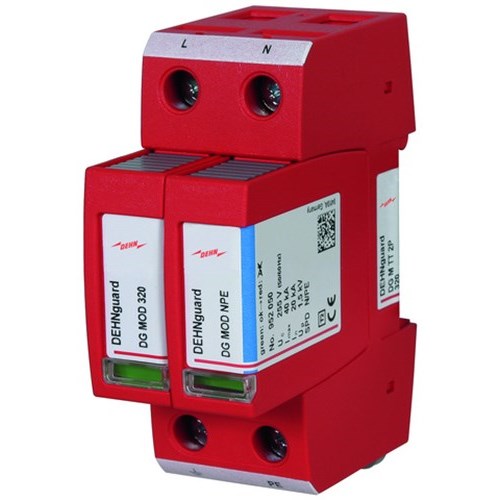

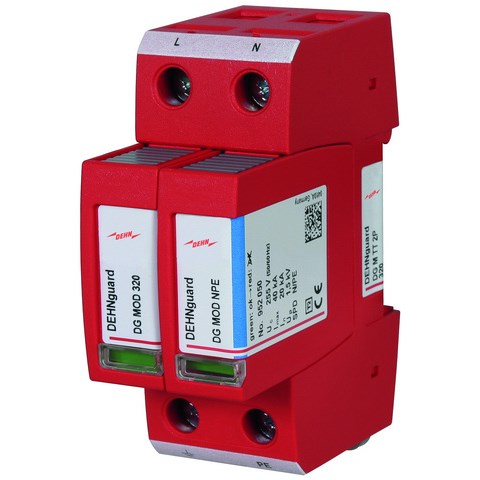

Product Type	Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	90 mm
Interrupt Rating	125 A
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Poles	2
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	20 kA
Rated Short Circuit Current	25 kA
Rated Voltage	230 V
Response Time	<= 25 ns (L-N), <= 100 ns (N-PE)
SPD Class	Type 2, Class II
Standards and Approvals	KEMA
Voltage Protection Level	<=1.5 kV (L-N), <=1.5 kV (N-PE)
Weight	247 g
Width	36 mm
