Product Code: CSXi015V4C1

The compact and lightweight soft starter is equipped with an integrated bypass contactor and motor protection. It has an input voltage range of 200-440V AC and a control voltage range of 110-240/380-440V AC. The current ratings are 34A for medium-duty and 30A for heavy-duty applications, with a motor power of 15kW. The soft starter offers several adjustments for enhanced control and features plug-in communication interfaces. Its dimensions are 98mm in width, 201mm in height, and 165mm in depth.

Brand	AuCom
Current Consumption (A)	10 (At power-up)
Degree of Protection	IP20
Dimensions (mm)	98W x 201H x 165D
EMC Emission	Equipment Class - A
Heat Dissipation During Run (W)	10 (Typical)
Heat Dissipation During Start (W/A)	3
Input Voltage AC (V)	Start: NO 300 (Max.)/ Stop: NC 300 (Max.)
Motor Power - Medium Duty 400-415V (kW)	15
Operational Temperature Range (°C)	-10 to +60
Pollution Degree	3
Rated Control Supply Voltage AC (V)	110- 240/380 - 440
Rated Current - Heavy Duty (A)	30
Rated Current - Medium Duty (A)	34
Rated Supply Voltage AC (V)	200 - 440
Standards and Approvals	C-tick, UL / C-UL, CE, CCC, Lloyds

Soft Starters

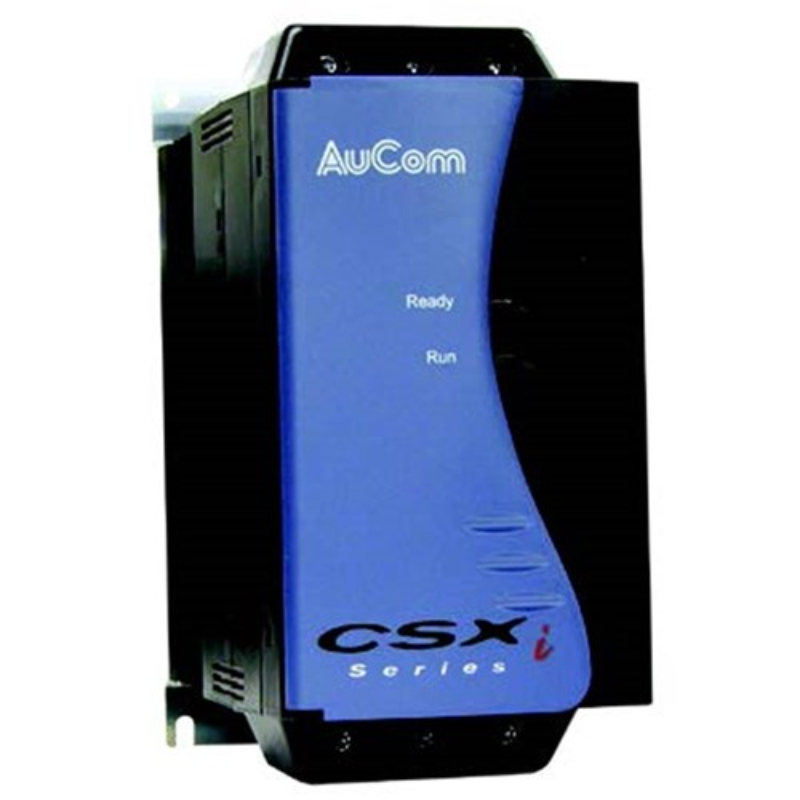

AuCom CSXi015V4C1 SOFT STARTER 15kW 34A 200-440VAC, CONTROL 110-240/380-440VAC

Product Code: CSXi015V4C1

Technical Specifications
