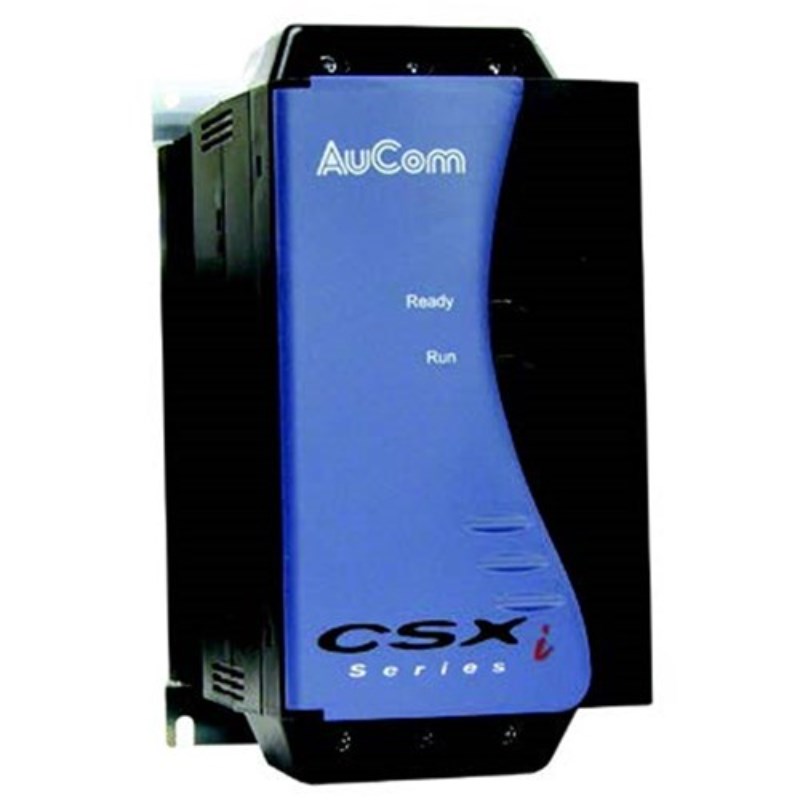

AuCom CSXi015V4C2 SOFT STARTER 15KW 34A 200-440VAC, CONTROL 24VAC/DC

Product Code: CSXi015V4C2

The compact and lightweight soft starter is designed with an integrated bypass contactor and motor protection. It operates with a 200-440V AC input and has a control voltage of 24V AC/DC. The current ratings for this soft starter are 34A for medium-duty and 30A for heavy-duty applications. It can handle a motor power of up to 15kW and offers several adjustments for enhanced control. Additionally, it features plug-in communication interfaces for easy connectivity. The dimensions of the soft starter are 98mm in width, 201mm in height, and 165mm in depth.

Technical Specifications

Brand AuCom
Current Consumption (A) 2 (At power-up)
Degree of Protection IP20
Dimensions (mm) 98W x 201H x 165D
EMC Emission Equipment Class - A
Heat Dissipation During Run (W) 10 (Typical)
Heat Dissipation During Start (W/A) 3
Input Voltage AC (V) Start: NO 300 (Max.)/ Stop: NC 300 (Max.)
Motor Power - Medium Duty 400-415V (kW) 15
Operational Temperature Range (°C) -10 to +60
Pollution Degree 3
Rated Control Supply Voltage AC/DC (V) 24
Rated Current - Heavy Duty (A) 30
Rated Current - Medium Duty (A) 34
Rated Supply Voltage AC (V) 200 - 440
Standards and Approvals C-tick, UL / C-UL, CE, CCC, Lloyds
