Product Code: CSXi037V4C1

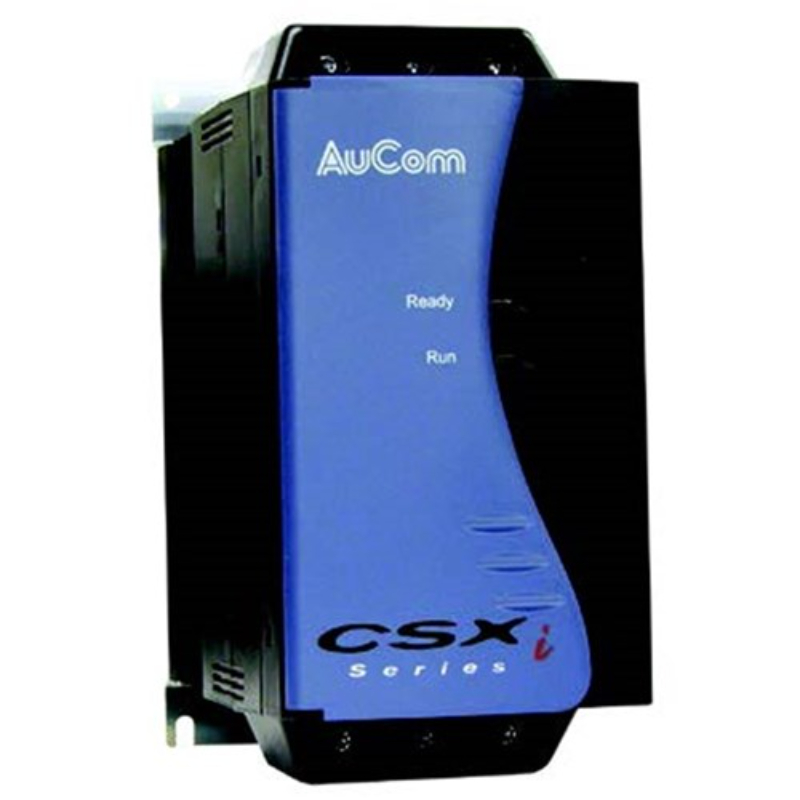

The compact and lightweight soft starter is designed with an integrated bypass contactor and motor protection. It operates with a 200-440V AC input and a 110-240/380-440V AC control voltage. The current ratings are medium-duty at 75A and heavy-duty at 65A, suitable for a motor power of 37kW. This soft starter offers several adjustments for enhanced control and includes plug-in communication interfaces. Its dimensions are 145mm in width, 215mm in height, and 193mm in depth.

Brand	AuCom
Current Consumption (A)	10 (At power-up)
Degree of Protection	IP20
Dimensions (mm)	145W x 215H x 193D
EMC Emission	Equipment Class - A
Heat Dissipation During Run (W)	10 (Typical)
Heat Dissipation During Start (W/A)	3
Input Voltage AC (V)	Start: NO 300 (Max.)/ Stop: NC 300 (Max.)
Motor Power - Medium Duty 400-415V (kW)	37
Operational Temperature Range (°C)	-10 to +60
Pollution Degree	3
Rated Control Supply Voltage AC (V)	110- 240/380 - 440
Rated Current - Heavy Duty (A)	65
Rated Current - Medium Duty (A)	75
Rated Supply Voltage AC (V)	200 - 440
Standards and Approvals	C-tick, UL / C-UL, CE, CCC, Lloyds
