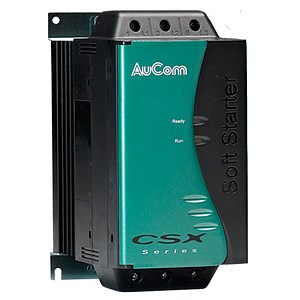

The Soft Starter Panel offers a reliable solution for managing motor starts in industrial and commercial settings. Designed to accommodate a range of voltage requirements, it operates efficiently within a rated voltage of 110-240 VAC and 380-440 VAC. This flexibility ensures compatibility with various electrical systems, making it suitable for diverse operational environments.
Capable of handling a rated current of 85 A, this panel is robust enough to manage significant power loads while maintaining performance integrity. The rated frequency range of 45-66 Hz further adds to its adaptability across different power supply conditions.
With an emphasis on safety and durability, the panel boasts a degree of protection at IP20, safeguarding internal components against dust and accidental contact. Additionally, it adheres to IP3 pollution standards, indicating resilience in moderately polluted environments.
The operational temperature range from -10°C to 60°C allows this soft starter panel to function effectively in both cold and warm climates without compromising performance. Its rated insulation voltage stands at 600 VAC, providing ample protection against electrical surges that could otherwise damage sensitive equipment.
In terms of compliance, the panel meets several international standards such as IEC 60947-4-2 (RCM), EN 60947-4-2 (CE), GB 14048.6 (CCC), TP TC 004/2011, TP TC 020/2011 (EAC), Lloyds Marine No.1 Specification (Marine) and UL508 certifications (UL/cUL). These endorsements assure users of its quality and reliability across different regulatory landscapes.
The soft starter's capacity extends up to a rated power output of 45 kW, making it suitable for medium-sized motors typically used in industrial applications. With humidity tolerance ranging from 5% to an impressive non-condensing maximum of 95%, it remains functional even in humid conditions without risk of condensation-related failures.
Overall, this Soft Starter Panel provides an excellent balance between performance capability and environmental resilience—key factors for ensuring smooth operation across various applications while adhering strictly to industry standards.
