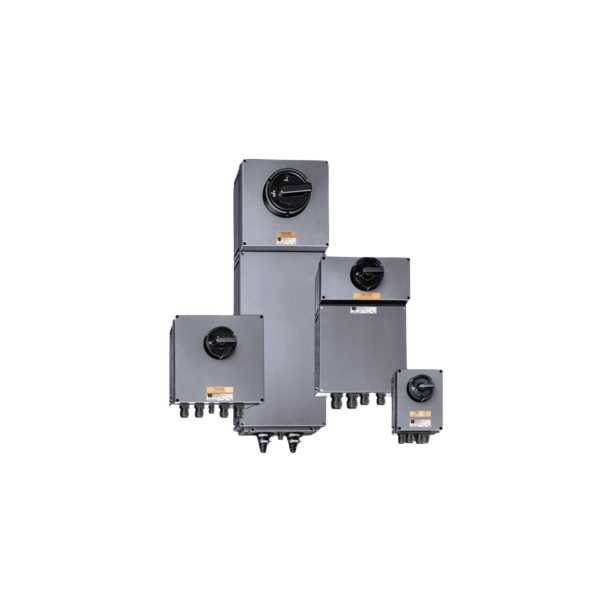

Stahl 205684 Load Disconnect Switch 3P+N-P 690VAC 25 A Black IP66

Product Code: 205684

  • Load disconnector with IP66 protection
  • Made from reinforced glass fibre polyester
  • Certified by ATEX, IECEx, NEPSI, PESO
  • Rated for 25 A and 690 VAC
  • Features 3P+N configuration
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Load Disconnect Switch
Brand STAHL
Colour Black
Degree of Protection IP66
Depth 170 mm
Height 170 mm
Material Reinforced Glass Fibre Polyester
Number of Poles 3P+N
Rated Current 25 A
Rated Voltage 690 VAC
Standards and Approvals ATEX (PTB), China (NEPSI), IECEx (PTB), India (PESO)
Width 132 mm

Description

<p>When it comes to ensuring safety and reliability in electrical installations, choosing the right load disconnector is crucial. This load disconnector offers a robust solution for industrial and commercial applications, meeting stringent safety standards with its impressive features.</p><p>Designed with a degree of protection rated at IP66, this load disconnector is well-suited for environments where dust and water ingress could be a concern. Its construction from reinforced glass fibre polyester not only ensures durability but also provides excellent resistance to harsh conditions. The black finish adds an understated yet professional appearance that fits seamlessly into various industrial settings.</p><p>With compliance to multiple international standards such as ATEX (PTB), China (NEPSI), IECEx (PTB), and India (PESO), this product assures users of its global acceptance and adherence to safety protocols. These approvals are particularly important for operations in hazardous areas where explosive atmospheres may be present.</p><p>The load disconnector is rated for a current of 25 A, making it suitable for medium-duty applications. It can handle voltages up to 690 VAC, providing versatility across different power systems. Equipped with 3 poles plus neutral (3P+N), it supports balanced three-phase loads while offering comprehensive circuit isolation capabilities.</p><p>Measuring 132 mm in width, 170 mm in height, and 170 mm in depth, the compact dimensions ensure that it can be easily integrated into existing panels or enclosures without occupying excessive space. This makes it ideal for installations where space efficiency is key without compromising on performance or accessibility.</p><p>In summary, this load disconnector stands out as a reliable choice due to its high degree of protection against environmental factors, adherence to international safety standards, and capability to support medium-duty electrical circuits effectively. Whether you&amp;#39;re upgrading existing infrastructure or planning new installations, this device offers peace of mind through quality engineering designed with user needs at the forefront.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
