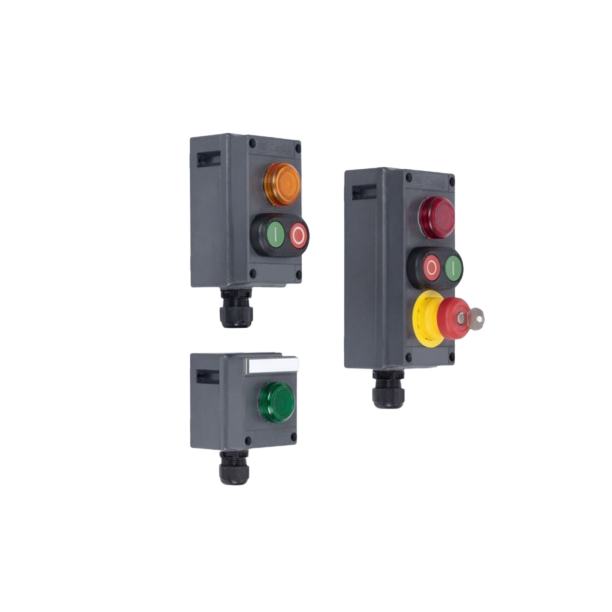

Stahl 130837 Control and Signalling Device 550VAC 10 A Polyester Resin Reinforced Glass Fibre IP66

Product Code: 130837

  • IP66 protection against dust and water
  • Durable polyester resin with glass fibre
  • Operates in -60 to 40°C environments
  • Certified ATEX and IECEx standards
  • Compact size: 80x93x72 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -60 to +40
Dimensions (mm) 80W x 93H x 72D
Rated Operational Current (A) 10 (T6)
Rated Operational Voltage AC (V) 550
Weight (kg) 0.42
Product Type Control and Signalling Device
Brand STAHL
Ambient Temperature -60 to 40 deg C
Colour Dark Grey
Contact Configuration 1NC+1NO
Degree of Protection IP66
Depth 72 mm
Height 93 mm
Material Polyester Resin, Reinforced Glass Fibre
Number of Poles 2
Rated Current 10 A
Rated Voltage 550 VAC
Standards and Approvals ATEX, IECEx
Tightening Torque 1.4 N-m
Width 80 mm
