Specifications

Ambient Temperature Range (°C)	-60 to +55
Auxiliary Contacts	1NO+1NC
Rated Operational Current (A)	4 (Max)
Certifications	ATEX (BVS), Canada (CSA), China (CQST), IECEx (BVS), India (PESO), Korea (KGS), USA (CSA)

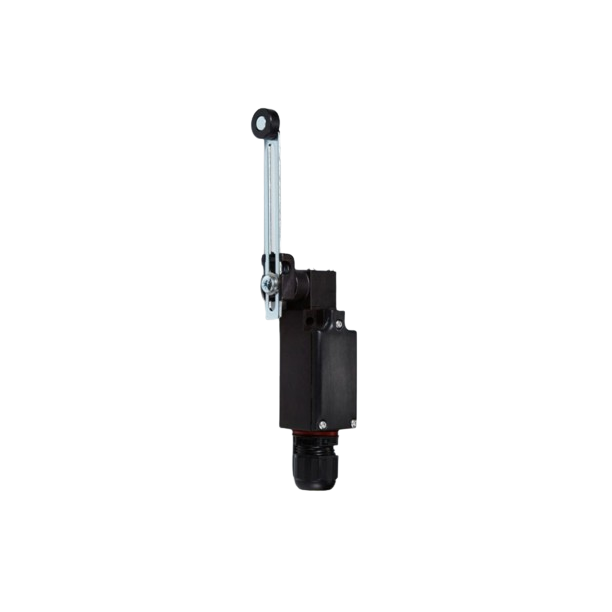

Product Type	Position Switch
Brand	STAHL
Series	8060/2
Actuator Type	Adjustable Roller Lever
Contact Configuration	1NC+1NO
Contact Material	Silver Nickel
Degree of Protection	IP66
Housing Material	Glass Reinforced Thermoplastic
Rated Current	4 A
Rated Voltage	500 VAC
Standards and Approvals	ATEx (BVS), Canada (CSA), China (CQST), IECEx (BVS), India (PESO), Korea (KGS), USA (CSA)
