Specifications

Ambient Temperature Range (°C)	-20 to +60
Dimensions (mm)	103W x 12L x 72D
Maximum Current (A)	0.03
Weight (kg)	0.11
No. of Channels	1
Certifications	ATEX (PTB), Brazil (ULB), Canada (CSA), EAC (STV), IECEx (PTB), Korea (KGS), USA (FM), USA (UL)
Maximum Voltage (V)	9.3
Maximum Power (mW)	69.8
Maximum Output Current (A)	0.016

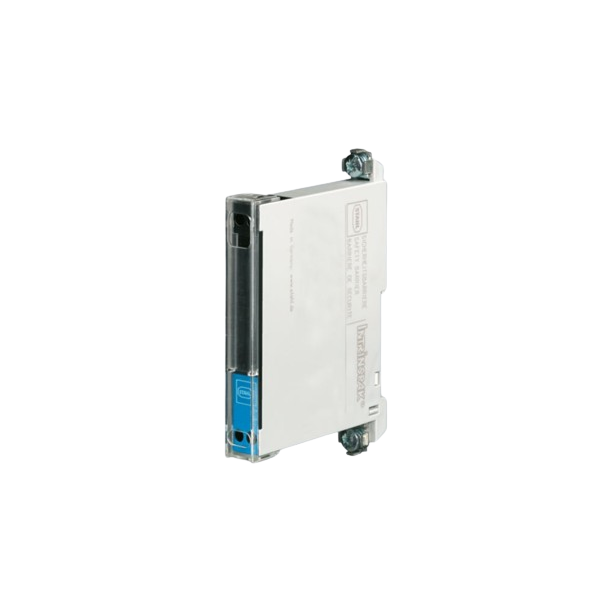

Product Type	Safety Barrier
Brand	STAHL
Ambient Temperature	-20 to 60 deg C
Cable Cross Section	1.5 sq-mm Earth, 4 sq-mm Maximum
Cable Type	Finely Stranded, Solid
Degree of Protection	IP20, IP40
Depth	72 mm
Material	Polyamide
Mounting Type	DIN Rail
Number of Channels	1
Rated Current	30 mA
Rated Power	69.8 mW
Rated Voltage	9.3 V
Standards and Approvals	ATEX (PTB), Brazil (ULB), Canada (CSA), China (NEPSI), IECEx (PTB), India (PESO), Japan (CML), Korea (KGS), USA (FM), USA (UL)
Width	103 mm
