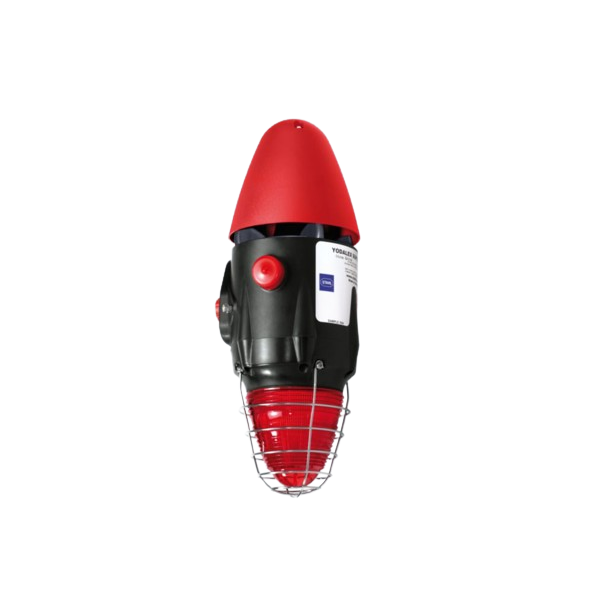

Stahl 225075 Combined Signal Device Xenon Horn/Flashing Beacon Lamp 24VDC Black Enclosure Red Lens

Product Code: 225075

  • IP66/IP67 protection for harsh environments
  • Durable polyester resin, reinforced glass fibre
  • Operates in temperatures from -60 to 40°C
  • Certified with ATEX and IECEx standards
  • Xenon horn/flashing beacon for visibility
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 55
Minimum Temperature (°C) -50
Nominal Output Current (A) 0.6
Rated Maximum Operational Voltage DC (V) 24
Maximum Continuous Voltage DC (V) 24
Product Type Combined Signal Device
Brand STAHL
Series YL6S
Ambient Temperature -60 to 40 deg C
Cable Cross Section 2.5 sq-mm
Colour Black Enclosure, Red Lens
Connection Type Screw
Degree of Protection IP66, IP67
Height 403 mm
Lamp Type Xenon Horn/Flashing Beacon
Length 145 mm
Material Polyester Resin, Reinforced Glass Fibre
Rated Current 600 mA
Rated Voltage 24 VDC
Standards and Approvals ATEX (BAS), IECEx (BAS)
Width 178.5 mm

Description

The Stahl YL6S is a robust signalling device designed for hazardous areas, ensuring safety with its flameproof enclosure. This combined xenon horn and flashing beacon operates on 24 VDC with a current draw of 600 mA. It features line monitoring capabilities and delivers a powerful auditory signal up to 110 dB(A) at 1 meter. Users can select tones via a DIL switch and adjust the volume by up to 18 dB(A). The device's visual alert comes from xenon flash tubes with an energy of 5.0 J and a flash rate of 1 Hz. Encased in black with a red lens, it maintains functionality in extreme temperatures ranging from -50°C to +55°C. With IP66/IP67 ratings, this signalling device promises durability and reliability in challenging environments.
