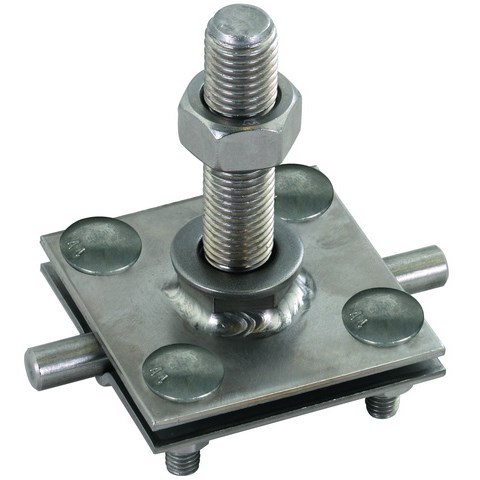

DEHN 478150 Connection Clamp W/Threaded Bolt 7-10mm 30-40mm M16 x 65mm M8 x 25mm Screw 316 Stainless Steel

Product Code: 478150

  • Made from durable 316 stainless steel
  • Complies with EN 62561-1 standards
  • Handles lightning currents up to 100 kA
  • Rated short circuit current of 5.9 kA
  • Versatile clamping range: 7-10 mm, 30-40 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 70x70x3
Suitable For Earthing
Weight (kg) 0.47
Weight (g) 464
Surface Protection Untreated
Gross Weight (g) 472.6
Rod Diameter (mm) 7 - 10
Type Lightning Protection
Clamping Range (mm) 7-10/30-40
Product Type Connection Clamp With Threaded Bolt
Brand DEHN
Clamping Range 7-10 mm, 30-40 mm
Connection Type M16 x 65 mm, M8 x 25 mm Screw
Connector Type Connection Clamps with threaded bolts
Depth 3 mm
Finish Untreated
Height 70 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material 316 Stainless Steel
Rated Short Circuit Current 5.9 kA
Screw Size M8/M16
Standards and Approvals EN 62561-1
Weight 464 g
Width 70 mm
