When it comes to safeguarding your electrical systems from surges, the Surge Diverter with a rated voltage of 1500 VAC and current capacity of 100 kA stands as a reliable choice. Designed for industrial and commercial applications, this surge diverter features a shunt connection type, ensuring efficient diversion of excessive voltage away from sensitive components.
The device offers an impressive degree of protection with an IP20 rating, making it suitable for indoor installations where dust ingress is minimal. Its mounting type is fuse base, allowing straightforward integration into existing setups without the need for extensive modifications.

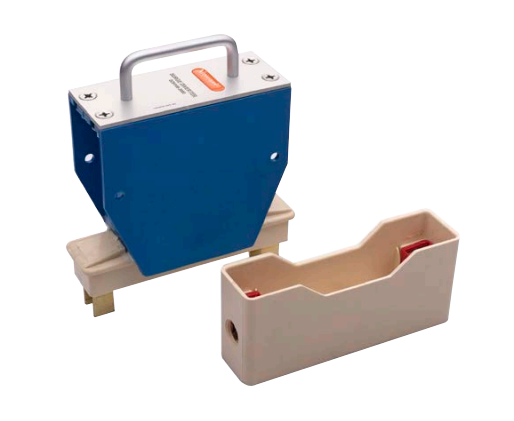

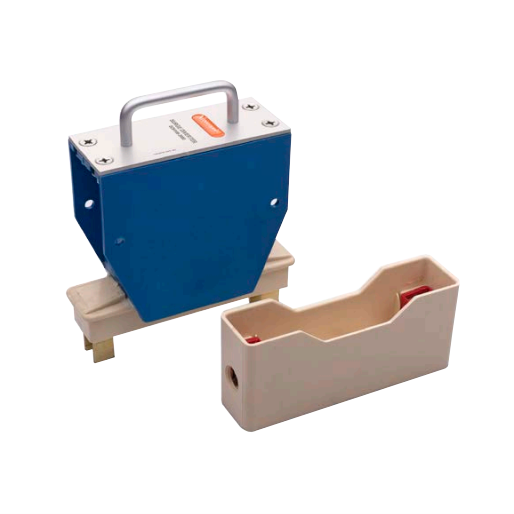

With dimensions measuring 57 mm in width, 214 mm in height, and 162 mm in depth, this compact blue unit can be easily accommodated within standard electrical enclosures. The operational temperature range spans from -40 to 70 degrees Celsius, providing versatility across various environmental conditions while maintaining optimal performance.
Compliance with IEC 61643-11 Class I standards ensures that the product meets international safety requirements. Additionally, adherence to AS/NZS 1768 Category C and IEEE C62.41 Category C further underscores its robustness against high-energy transients typical in industrial settings.
Constructed from durable materials such as ABS and ceramic, this surge diverter weighs in at just 2 kg—light enough for easy handling during installation or maintenance tasks. Its response time is less than five nanoseconds (<5 ns), which means it acts swiftly to protect your equipment from sudden voltage spikes.
Humidity resilience ranges between 5% to 95%, ensuring reliable operation even in varying climatic conditions. The tightening torque specification of 2.5 N-m provides guidance for secure connections during setup.
The voltage protection level is set at an effective threshold of 3.8 kV with modes of protection designated as L-PE (Line-to-Protective Earth). This configuration helps mitigate potential damage by redirecting harmful surges safely towards earth grounding paths.
Overall, this surge diverter presents itself as a dependable component within any comprehensive electrical protection strategy—balancing technical specifications with practical design considerations aimed at delivering peace of mind amidst unpredictable power disturbances on site.
