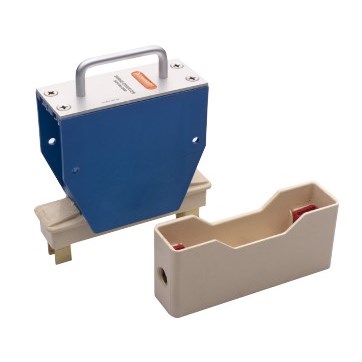

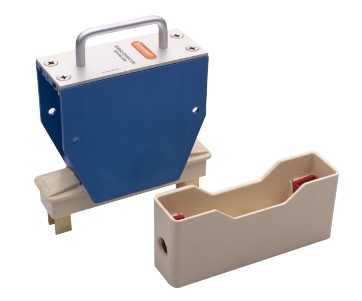

Novaris SDH-100-2000-PH High Voltage Surge Diverter 100kA 2000VAC Shunt 57mm W 162mm D ABS Ceramic Blue IP20

Product Code: SDH-100-2000-PH

  • Surge protection up to 100 kA
  • Rated for 2000 VAC systems
  • Compact size: 57x214x162 mm
  • Fast response time <5 ns
  • Operates in -40 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 214H x 57W x 162D
Maximum Continuous Operating Voltage MCOV AC (V) 2000
Maximum Discharge Current (8/20µs) - Imax (kA) 100 (L-PE)
No. of Phases 1
Operational Temperature Range (&#176;C) -40 to 70
Voltage Protection Level (3kA 8/20µs) - Up (kV) <4.8 (L-PE)
Product Type High Voltage Surge Diverter
Brand NOVARIS
Series SDH
Colour Blue
Connection Type Shunt
Degree of Protection IP20
Depth 162 mm
Height 214 mm
Humidity 5-95%
Material ABS, Ceramic
Modes of Protection L-PE
Mounting Type GEC RSL63PH
Operational Temperature -40 to 70 deg C
Rated Current 100 kA
Rated Voltage 2000 VAC
Response Time <5 ns
Standards and Approvals IEC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C
Tightening Torque 2.5 N-m
Voltage Protection Level 4.8 kV
Weight 2 kg
Width 57 mm

Description

Airfield Lighting High Voltage Surge Diverter is a 1 Phase device designed for aviation runway lighting, mining, and railway industries. It has a maximum continuous voltage (Uc) of 2000V and can handle a maximum discharge current (Imax) of 100kA at 8/20ms. The voltage protection level is Up at 3kA (8/20ms), which is less than 4800V. This surge diverter offers modes of protection including L-PE and comes with a replaceable module. Base options are also available for customization.
