Specifications

Dimensions (mm)	57W x 214H x 162D
Maximum Continuous Voltage AC (V)	2000
Maximum Discharge Current (8/20µs) (kA)	100

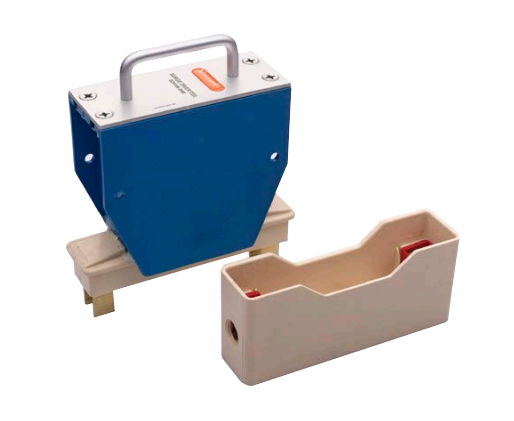

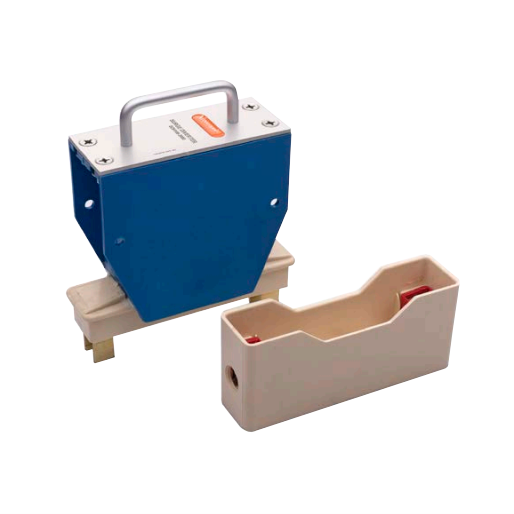

Product Type	High Voltage Surge Diverter With Alarm
Brand	NOVARIS
Colour	Blue
Connection Type	Shunt
Degree of Protection	IP20
Depth	162 mm
Height	214 mm
Humidity	5-95%
Material	ABS, Ceramic
Modes of Protection	L-PE
Mounting Type	Fuse Base
Operational Temperature	-40 to 70 deg C
Rated Current	100 kA
Rated Voltage	2000 VAC
Response Time	<5 ns
Standards and Approvals	IEC 61643-11 Class I, AS/NZS 1768 Category C, IEEE C62.41 Category C
Tightening Torque	2.5 N-m
Voltage Protection Level	4.8 kV
Weight	2 kg
Width	57 mm
