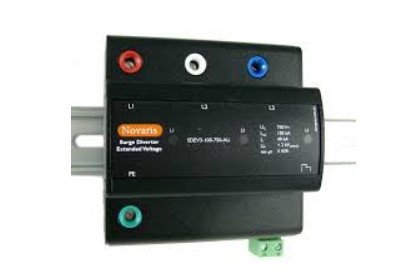

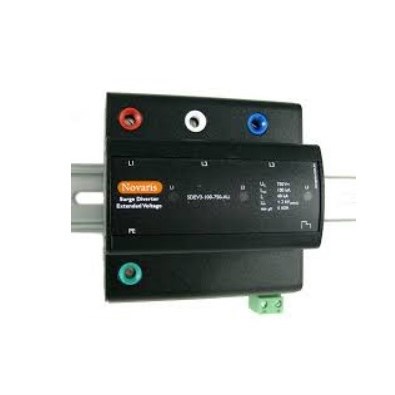

Novaris SDEV3-100-750-AU Surge Diverter 3 PH 100kA 750VAC Shunt IP20

Product Code: SDEV3-100-750-AU

  • Surge protection up to 750 VAC
  • Handles up to 100 kA current
  • Suitable for 3-phase systems
  • Shunt connection type for easy integration
  • IP20 rated for basic protection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 90W x 95H x 70L
Maximum Continuous Operating Voltage MCOV AC (V) 750 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA) 100 (L-N)
No. of Poles 3P+PE
Nominal Discharge Current (8/20µs) - In (kA) 40 (L-N)
No. of Phases 3
Nominal Voltage AC (V) 690
Operational Temperature Range (°C) -40 to 70
Voltage Protection Level (3kA 8/20µs) - Up (kV) <1.4 (L-N)
Weight (g) 570
Product Type Surge Diverter
Brand NOVARIS
Series SDEV
Connection Type Shunt
Degree of Protection IP20
Height 95 mm
Length 70 mm
Mounting Type DIN Rail
Operational Temperature -40 to 70 deg C
Phase 3
Rated Current 100 kA (L-N)
Rated Voltage 750 VAC (L-N)
Standards and Approvals IEC 61643-1, AS/NZS 1768, IEEE C62.41, UL1449
Voltage Protection Level <1.4 kA (L-N)
Weight 570 g
Width 90 mm

Description

The Novaris SDEV3-100-750-AU is an extended voltage surge diverter designed for higher voltage installations, offering robust protection against power surges in a failsafe metal enclosure. It meets AS/NZS1768-2007 and AS/NZS3000 wiring rules, among other standards.
