When it comes to safeguarding your industrial or commercial electrical systems, selecting a reliable surge diverter is crucial. This particular model offers a robust solution with its impressive specifications tailored for demanding environments.
With a rated voltage of 1000 VAC and an exceptional current handling capacity of 200 kA, this surge diverter is designed to manage substantial electrical surges efficiently. It operates using a shunt connection type, ensuring seamless integration into existing systems without disrupting the primary circuit.
The device boasts an IP20 degree of protection, making it suitable for indoor installations where dust ingress may be a concern but water exposure is minimal. Its mounting type on a fuse base provides ease of installation and maintenance, allowing quick replacements when necessary.

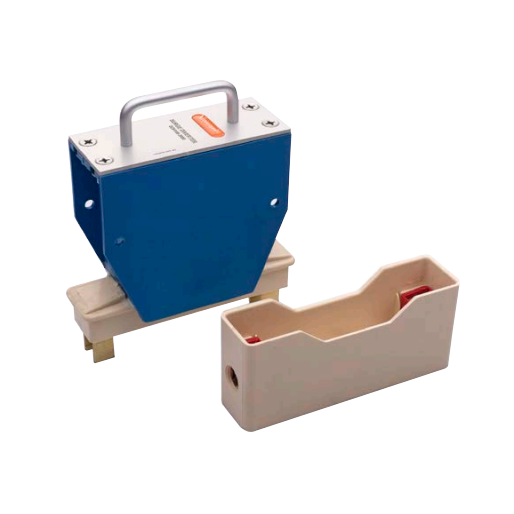

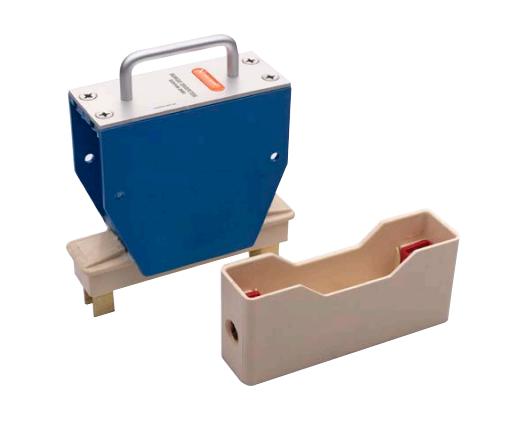

Measuring at 57 mm in width, 214 mm in height, and 162 mm in depth, with a weight of just 2 kg, this compact unit fits neatly into most setups without occupying excessive space. The blue-colored casing not only adds an aesthetic touch but also aids in easy identification during inspections or maintenance checks.
Constructed from durable ABS and ceramic materials, the surge diverter promises longevity even under challenging conditions. It can operate effectively within temperatures ranging from -40 to 70 degrees Celsius and withstands humidity levels between 5% to 95%, ensuring reliability across various climates.
Performance-wise, the surge diverter features an impressive response time of less than 5 nanoseconds (ns), providing swift protection against transient over-voltages. With a voltage protection level set at 2.6 kV and modes of protection including L-PE (Line to Protective Earth), it offers comprehensive safety against potential hazards.
In terms of compliance and standards, this product adheres to IEC 61643-11 Class I requirements as well as AS/NZS 1768 Category C and IEEE C62.41 Category C standards—reassuring you that it meets stringent international benchmarks for quality and performance.
For installation specifics, note that the recommended tightening torque is set at 2.5 N-m—critical for ensuring secure connections that prevent operational inefficiencies or failures over time.
Overall, if you're seeking dependable protection for your electrical infrastructure against surges while maintaining adherence to international standards, this surge diverter provides both functionality and peace of mind in one package.
