Specifications

Nominal Discharge Current (8/20µs) - In (kA)	40
No. of Phases	3
Nominal Voltage AC (V)	400
Operational Temperature Range (°C)	-40 to 70
Voltage Protection Level - Up (kV)	0.8
Response Time (ns)	5
Enclosure Material	Aluminium
Backup fuse rating (A)	63
Dimensions (mm)	80W x 69H x 141D
Weight (g)	720
Maximum Continuous Voltage DC (V)	670
Maximum Continuous Voltage AC (V)	480
Maximum Discharge Current (8/20µs) (kA)	100

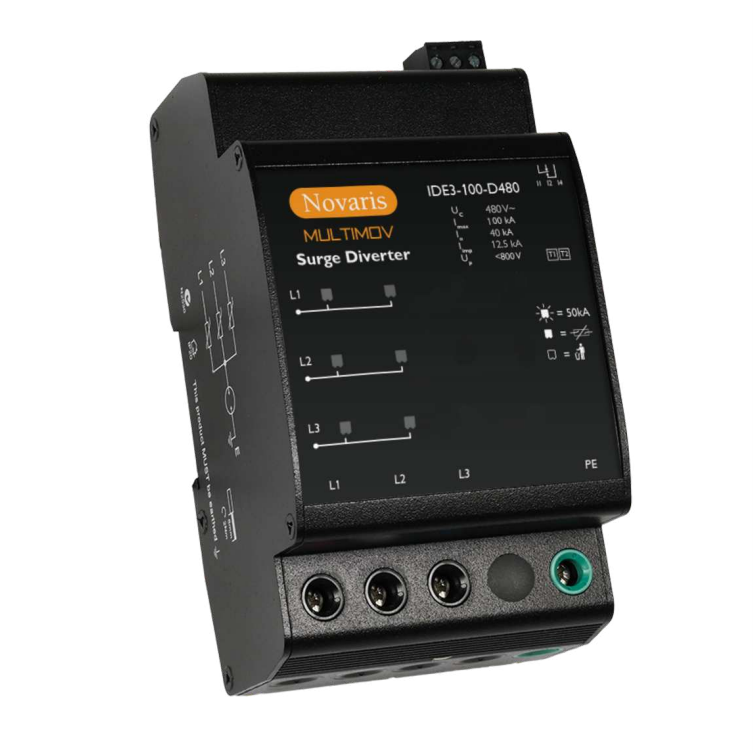

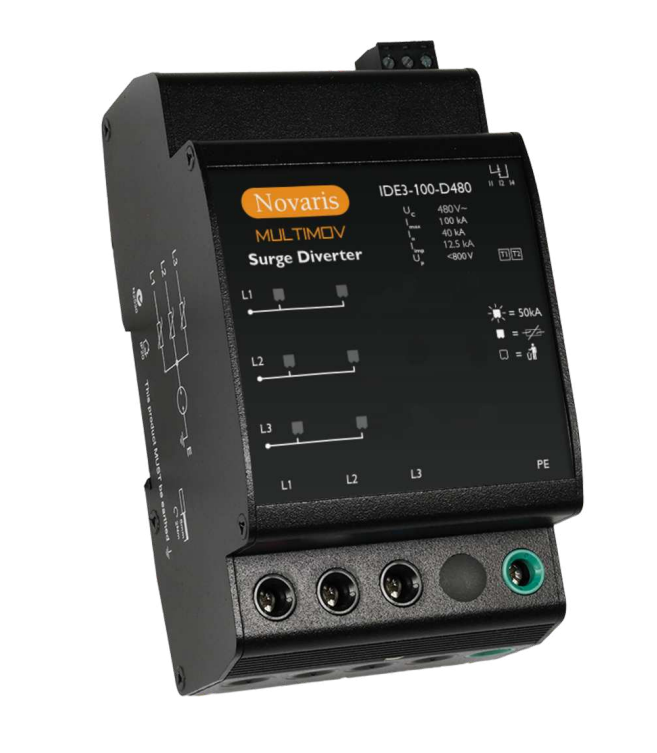

Product Type	Surge Diverter
Brand	NOVARIS
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	141 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	63 A
Height	69 mm
Humidity	5-95%
Lightning Impulse Current	12.5 kA
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Ports	1
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	100 kA (L-PE)
Rated Short Circuit Current	25 kA
Rated Voltage	400 VAC
Response Time	<5 ns (L-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<800 V
Weight	720 g
Width	80 mm
